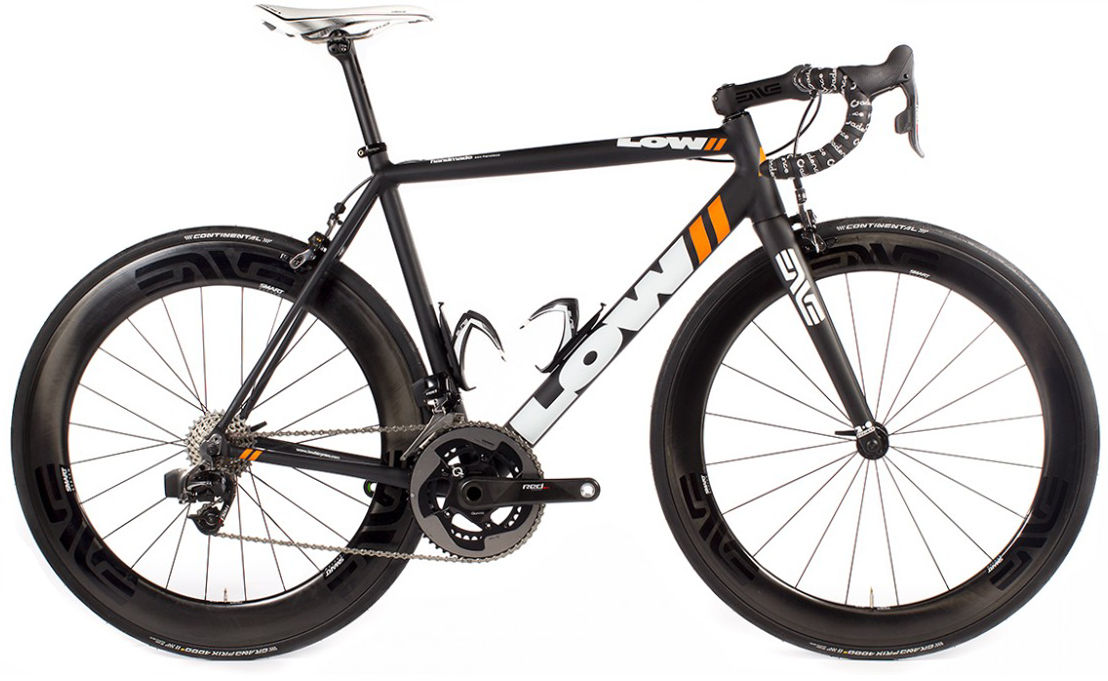

2016 Low Road MKI geometry
Full frame geometry for the 2016 Low Road MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 498 | 387 | 75 | 72 | 100 | 520 | 463 | 719 | 70 | 405 | 970 | 43 |
| 52 | 520 | 384 | 74 | 73 | 120 | 535 | 493 | 744 | 70 | 405 | 966 | 43 |
| 54 | 540 | 390 | 74 | 73 | 140 | 545 | 513 | 763 | 70 | 405 | 978 | 43 |
| 56 | 559 | 405 | 74 | 73 | 160 | 565 | 533 | 782 | 70 | 405 | 998 | 43 |
| 58 | 580 | 403 | 73 | 73.5 | 180 | 580 | 552 | 800 | 70 | 408 | 1001 | 43 |
| 60 | 608 | 414 | 73 | 73.5 | 210 | 600 | 586 | 833 | 70 | 408 | 1020 | 43 |
All measurements in millimetres unless marked (°) for angles.
