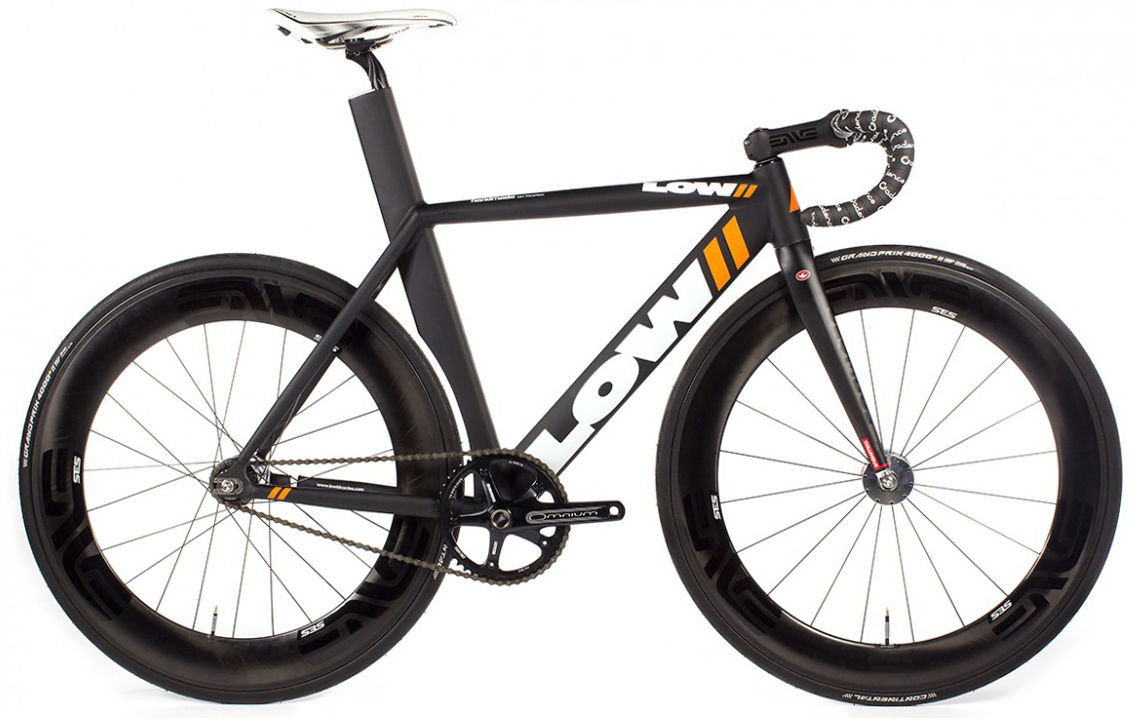

2016 Low MKII Aero geometry
Full frame geometry for the 2016 Low MKII Aero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 478 | 382 | 75 | 74 | 90 | 510 | 745 | 50 | 390 | 918 | 30 |
| 52 | 498 | 377 | 74 | 74 | 110 | 520 | 760 | 50 | 390 | 916 | 30 |
| 54 | 517 | 392 | 74 | 74 | 130 | 540 | 780 | 50 | 390 | 937 | 30 |
| 56 | 536 | 406 | 74 | 74 | 150 | 560 | 800 | 50 | 390 | 957 | 30 |
| 58 | 555 | 421 | 74 | 74 | 170 | 580 | 820 | 50 | 390 | 977 | 30 |
| 60 | 576 | 430 | 74 | 74.5 | 190 | 595 | 840 | 50 | 390 | 987 | 30 |
All measurements in millimetres unless marked (°) for angles.
