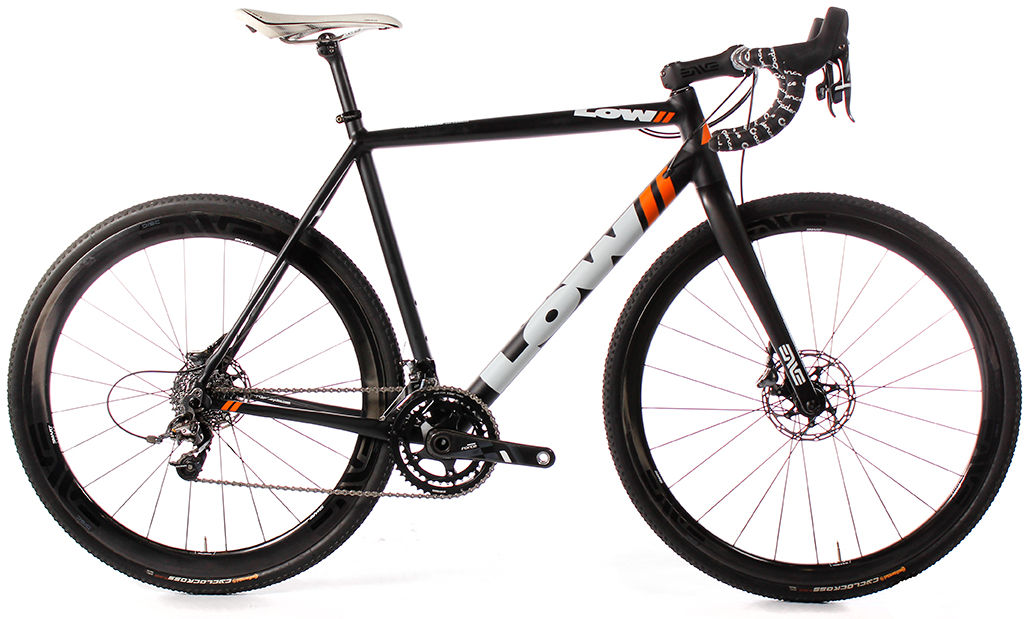

2016 Low CX MKII geometry
Full frame geometry for the 2016 Low CX MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 523 | 370 | 75 | 70.5 | 100 | 510 | 512 | 764 | 70 | 425 | 997 | 47 |
| 52 | 545 | 373 | 74 | 71.5 | 120 | 530 | 536 | 785 | 70 | 425 | 999 | 47 |
| 54 | 564 | 383 | 74 | 71.5 | 140 | 540 | 554 | 805 | 70 | 425 | 1010 | 47 |
| 56 | 585 | 397 | 74 | 72 | 160 | 560 | 574 | 824 | 70 | 425 | 1026 | 47 |
| 58 | 605 | 390 | 73 | 72.5 | 180 | 575 | 597 | 845 | 70 | 425 | 1027 | 47 |
| 60 | 605 | 405 | 73 | 72.5 | 180 | 590 | 595 | 845 | 70 | 425 | 1043 | 47 |
All measurements in millimetres unless marked (°) for angles.
