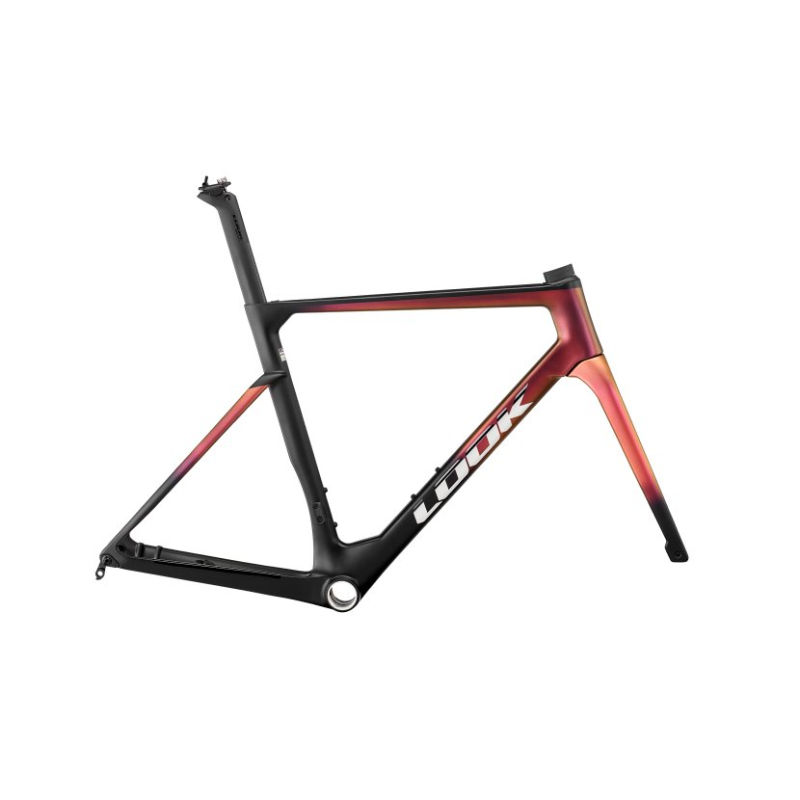

2024 Look 795 Blade RS geometry
Full frame geometry for the 2024 Look 795 Blade RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XXS | 486.2 | 361.3 | 75 | 70.7 | 77.9 | 491.6 | 463 | 75.5 | 410 |
| XS | 501.2 | 371.3 | 74.5 | 71.8 | 90.4 | 510.2 | 479.6 | 73 | 410 |
| S | 525.2 | 381.3 | 74.5 | 71.8 | 115.6 | 526.9 | 504.4 | 73 | 410 |
| M | 549.2 | 391.2 | 74.5 | 73 | 136.7 | 543.5 | 529.9 | 70.5 | 410 |
| L | 573.2 | 401.2 | 74.5 | 73 | 161.8 | 560.1 | 554.8 | 70.5 | 410 |
| XL | 597.2 | 411.2 | 74.5 | 73 | 198.5 | 576.8 | 579.7 | 68 | 410 |
All measurements in millimetres unless marked (°) for angles.
