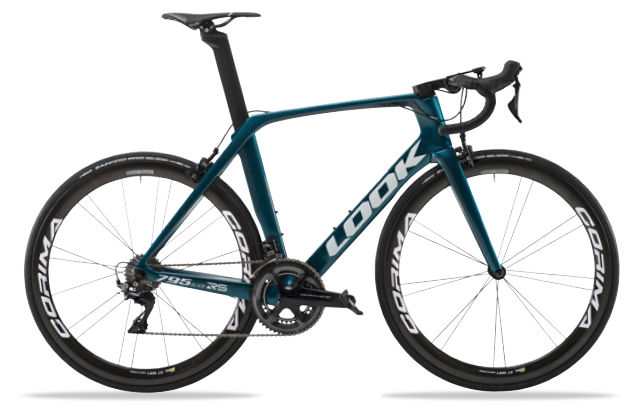

2019 Look 795 Blade RS geometry
Full frame geometry for the 2019 Look 795 Blade RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 367 | 75.8 | 71.8 | 112 | 494 | 445 | 745 | 65 | 568 | 405 | 964 | 50 | 59 |
| S | 529 | 377 | 75.8 | 71.8 | 137 | 510 | 470 | 668 | 65 | 586 | 405 | 982 | 50 | 59 |
| M | 553 | 386 | 75.8 | 73 | 156 | 526 | 494 | 793 | 65 | 584 | 405 | 980 | 43 | 59 |
| L | 578 | 396 | 75.8 | 73 | 181 | 545 | 519 | 818 | 65 | 602 | 405 | 998 | 43 | 59 |
| XL | 601 | 406 | 75.8 | 73 | 206 | 558 | 544 | 841 | 65 | 619 | 405 | 1015 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
