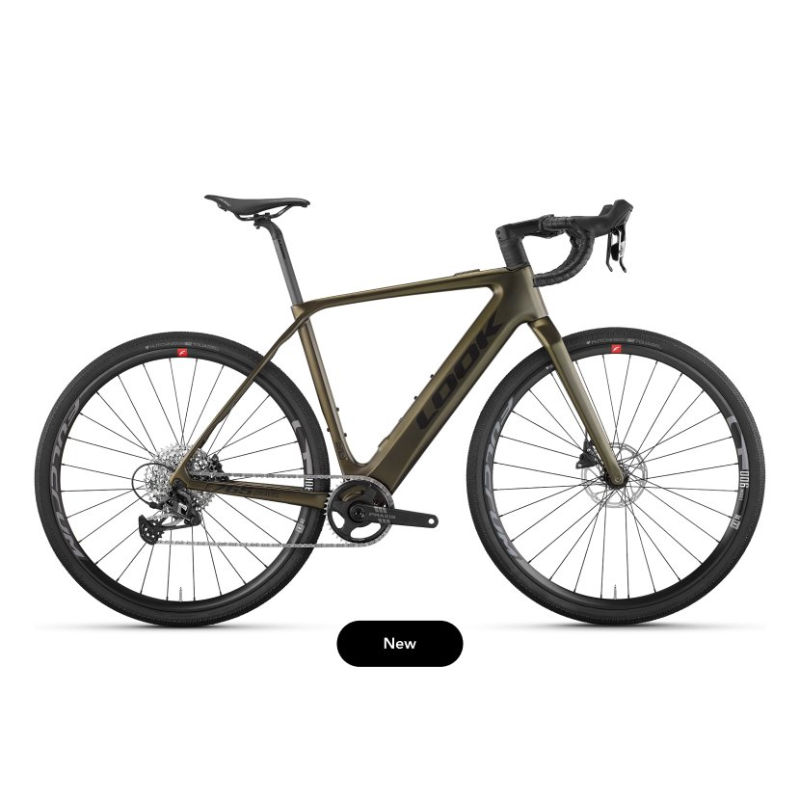

2026 Look E-765 Gravel geometry
Full frame geometry for the 2026 Look E-765 Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544.2 | 355.1 | 74 | 70.8 | 74.2 | 511.1 | 470 | 576 | 430 | 50 | 72.4 |
| S | 568.2 | 365 | 74 | 70.8 | 99.6 | 527.9 | 490 | 594 | 430 | 50 | 72.4 |
| M | 592.1 | 375 | 74 | 70.8 | 127.6 | 544.8 | 510 | 613 | 430 | 50 | 72.4 |
| L | 616.1 | 385.1 | 74 | 70.8 | 153 | 561.7 | 535 | 631 | 430 | 50 | 72.4 |
| XL | 641.2 | 394.8 | 74 | 70.8 | 182.2 | 578.7 | 560 | 650 | 430 | 50 | 72.4 |
All measurements in millimetres unless marked (°) for angles.
