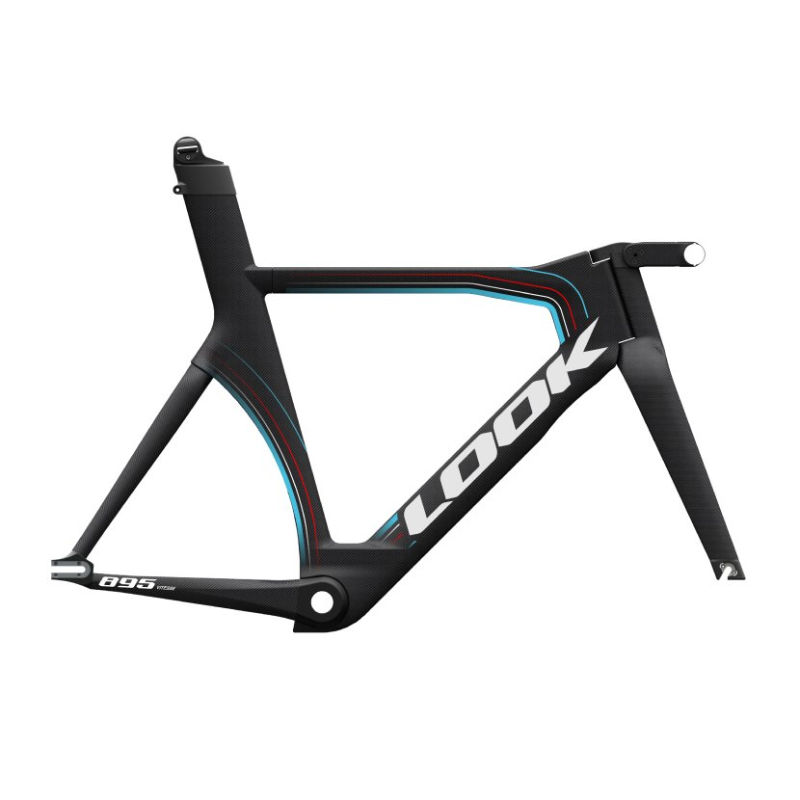

2026 Look 895 Vitesse geometry
Full frame geometry for the 2026 Look 895 Vitesse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS-XS | 486 | 359 | 74.5 | 72.5 | 89.5 | 493.7 | 468.5 | 746.6 | 50 | 544 | 380 | 43 | 61.5 |
| S | 503 | 393 | 74.5 | 72.5 | 107.3 | 532.5 | — | 758.3 | 50 | 583.2 | 380 | 43 | 61.5 |
| M | 520 | 427 | 74.5 | 72.5 | 125.1 | 571.2 | — | 799.5 | 50 | 622.1 | 380 | 43 | 61.5 |
| L | 537 | 461 | 74.5 | 72.5 | 142.9 | 609.9 | — | 828.4 | 50 | 650.6 | 380 | 34 | 70.9 |
All measurements in millimetres unless marked (°) for angles.
