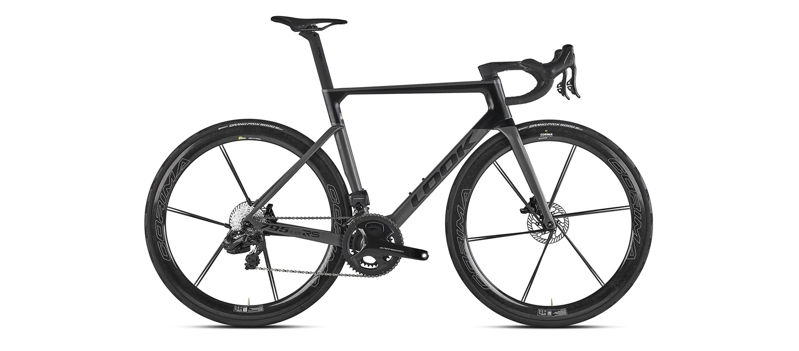

2023 Look 795 Blade RS geometry
Full frame geometry for the 2023 Look 795 Blade RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 505 | 370 | 74.5 | 71.8 | 90.4 | 510 | 478.3 | 741 | 73 | 569.8 | 410 | 50 | 59.8 |
| S | 529 | 380 | 74.5 | 71.8 | 115.6 | 526.7 | 504.4 | 765 | 73 | 587.6 | 410 | 50 | 59.8 |
| M | 553 | 390 | 74.5 | 73 | 136.7 | 543.4 | 529 | 790 | 70.5 | 586.7 | 410 | 43 | 59.3 |
| L | 577 | 400 | 74.5 | 73 | 161.8 | 560 | 554.8 | 815 | 70.5 | 603.9 | 410 | 43 | 59.3 |
| XL | 601 | 410 | 74.5 | 73 | 189.5 | 576.7 | 579.6 | 841 | 68 | 621.7 | 410 | 43 | 59.3 |
All measurements in millimetres unless marked (°) for angles.
