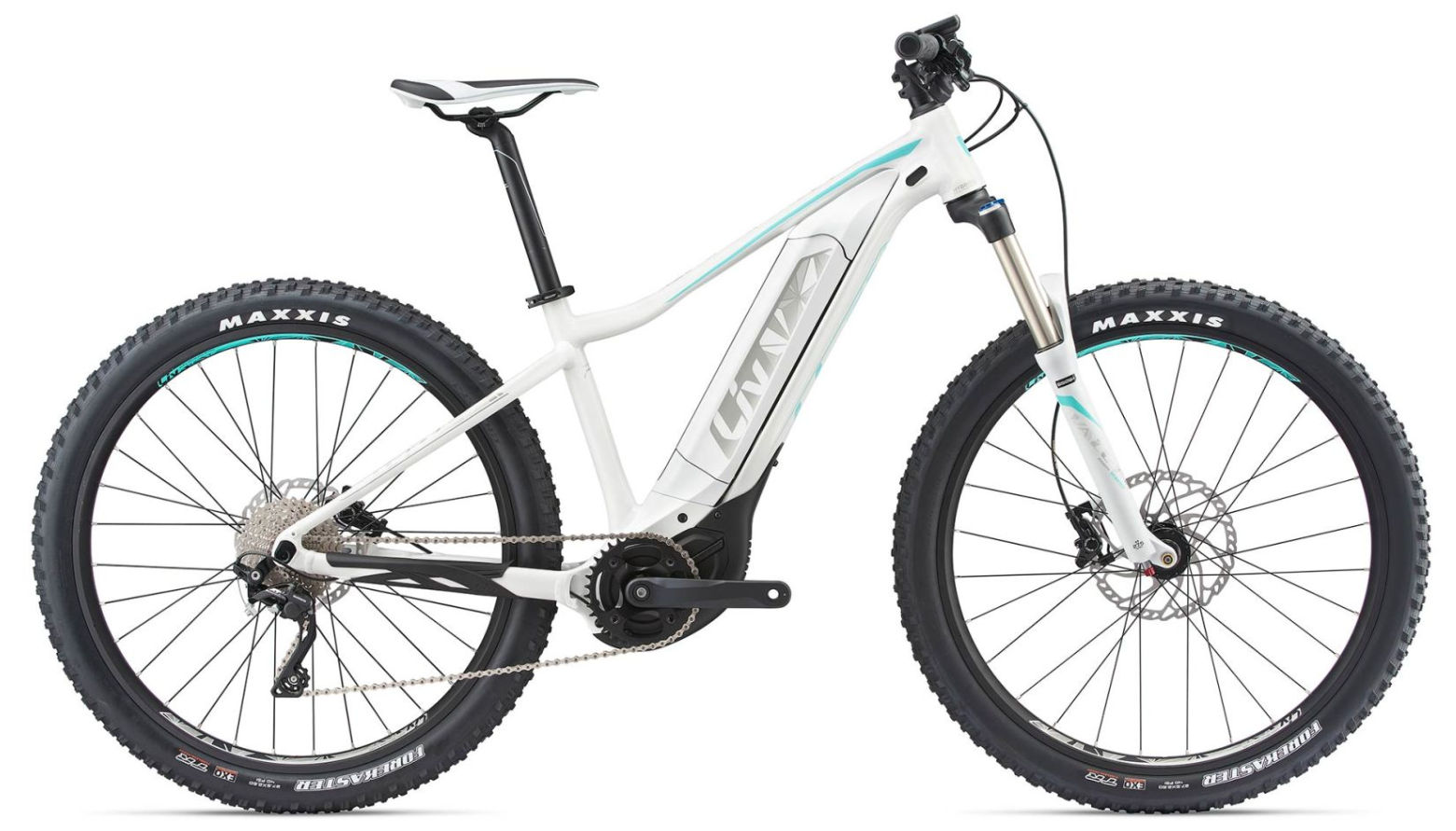

2018 Liv Vall-E+ geometry
Full frame geometry for the 2018 Liv Vall-E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 612 | 374 | 74 | 68 | 110 | 550 | 674 | 475 | 1116 |
| S | 617 | 382 | 73.5 | 68 | 115 | 565 | 696 | 475 | 1126 |
| M | 635 | 390 | 73 | 68 | 135 | 585 | 742 | 475 | 1142 |
| L | 649 | 401 | 73 | 68 | 150 | 600 | 763 | 475 | 1158 |
All measurements in millimetres unless marked (°) for angles.
