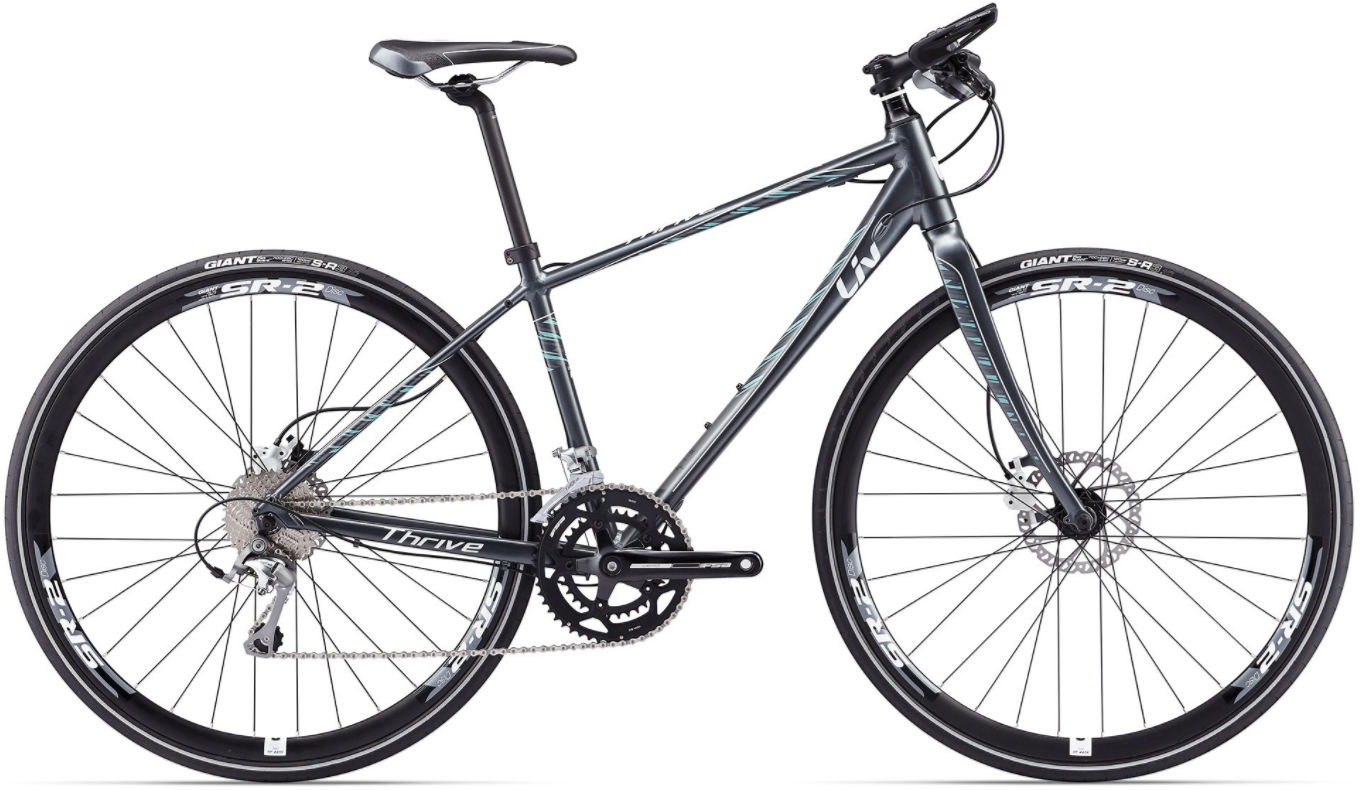

2016 Liv Thrive MKI geometry
Full frame geometry for the 2016 Liv Thrive MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 377 | 75 | 70.5 | 110 | 520 | 676 | 594 | 440 | 1034 |
| S | 561 | 374 | 74.5 | 71 | 135 | 530 | 709 | 596 | 440 | 1036 |
| M | 591 | 385 | 74 | 71.5 | 165 | 555 | 746 | 612 | 440 | 1052 |
| L | 620 | 392 | 74 | 71.5 | 195 | 570 | 776 | 628 | 440 | 1068 |
All measurements in millimetres unless marked (°) for angles.
