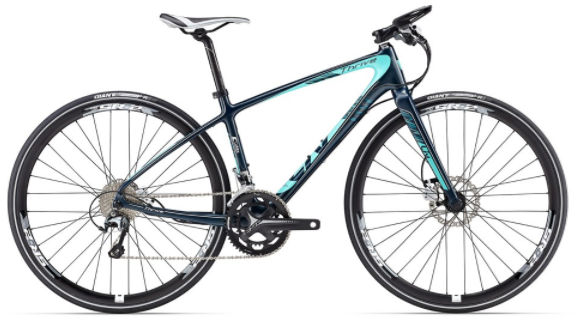

2016 Liv Thrive CoMax geometry
Full frame geometry for the 2016 Liv Thrive CoMax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 377 | 74.5 | 70.5 | 105 | 520 | 669 | 587 | 430 | 1017 |
| S | 535 | 392 | 74.5 | 71 | 125 | 540 | 697 | 604 | 430 | 1034 |
| M | 559 | 400 | 74 | 71 | 150 | 560 | 724 | 620 | 430 | 1050 |
| L | 583 | 413 | 74 | 71 | 175 | 580 | 745 | 642 | 430 | 1072 |
All measurements in millimetres unless marked (°) for angles.
