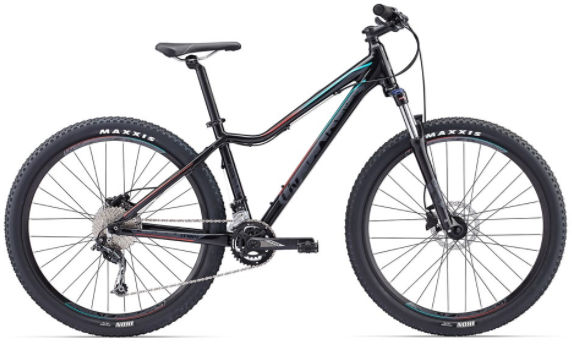

2017 Liv Tempt MKI geometry
Full frame geometry for the 2017 Liv Tempt MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 382 | 74 | 69.5 | 100 | 550 | 350 | 615 | 45 | 631 | 440 | 1067 | 42 | 88 |
| S | 606 | 391 | 73.5 | 70 | 120 | 570 | 400 | 654 | 45 | 641 | 440 | 1077 | 42 | 84 |
| M | 620 | 400 | 73 | 70 | 135 | 590 | 440 | 686 | 45 | 656 | 440 | 1092 | 42 | 84 |
| L | 634 | 400 | 72.5 | 70 | 150 | 600 | 490 | 722 | 45 | 661 | 440 | 1097 | 42 | 84 |
All measurements in millimetres unless marked (°) for angles.
