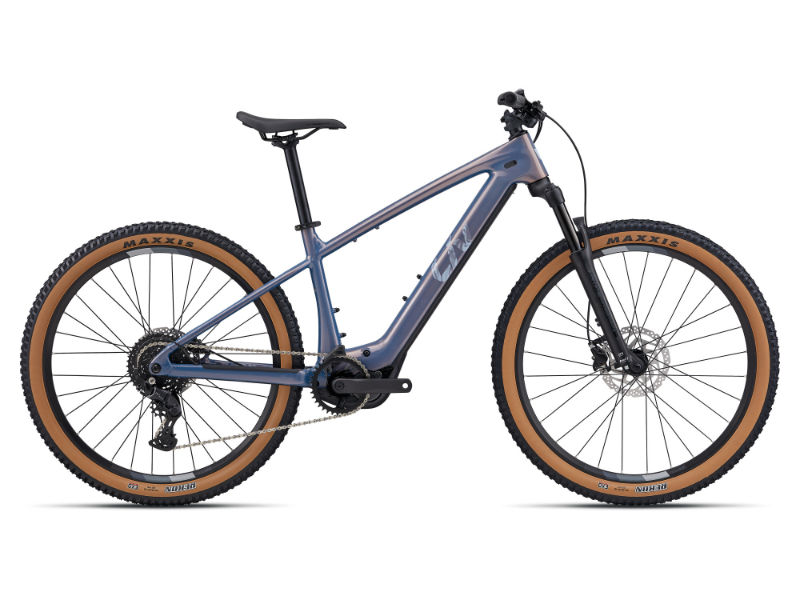

2026 Liv Tempt E+ geometry
Full frame geometry for the 2026 Liv Tempt E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 596 | 433 | 78 | 68 | 110 | 560 | 365 | 717 | 45 | 450 | 1151 | 44 | 106 |
| S | 600 | 442 | 78 | 68 | 115 | 570 | 405 | 732 | 45 | 450 | 1162 | 44 | 106 |
| M | 618 | 417 | 74 | 68 | 105 | 595 | 445 | 750 | 60 | 470 | 1139 | 46 | 104 |
| L | 627 | 435 | 74 | 68 | 115 | 615 | 485 | — | 60 | 470 | 1160 | 46 | — |
All measurements in millimetres unless marked (°) for angles.
