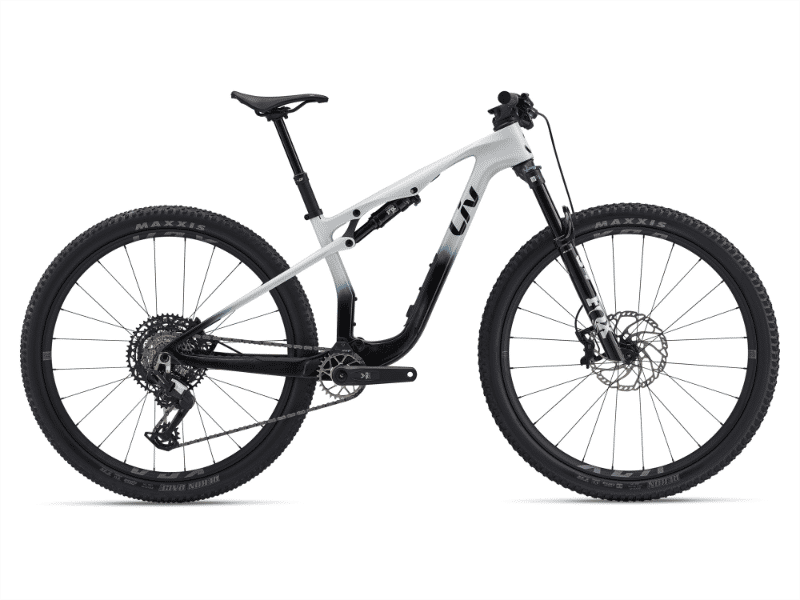

2026 Liv Pique X Advanced SL geometry
Full frame geometry for the 2026 Liv Pique X Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 605 | 394 | 75 | 66 | 90 | 557 | 400 | 777 | 48 | 437 | 1125 | 44 | 119.6 |
| S | 610 | 410 | 75 | 66 | 95 | 574 | 410 | 775 | 48 | 437 | 1143 | 44 | 119.5 |
| M | 620 | 430 | 75 | 66 | 105 | 596 | 440 | 770 | 48 | 437 | 1166 | 44 | 119.3 |
| L | 629 | 445 | 75.1 | 66.1 | 115 | 613 | 470 | 765 | 48 | 437 | 1185 | 44 | 119.2 |
All measurements in millimetres unless marked (°) for angles.
