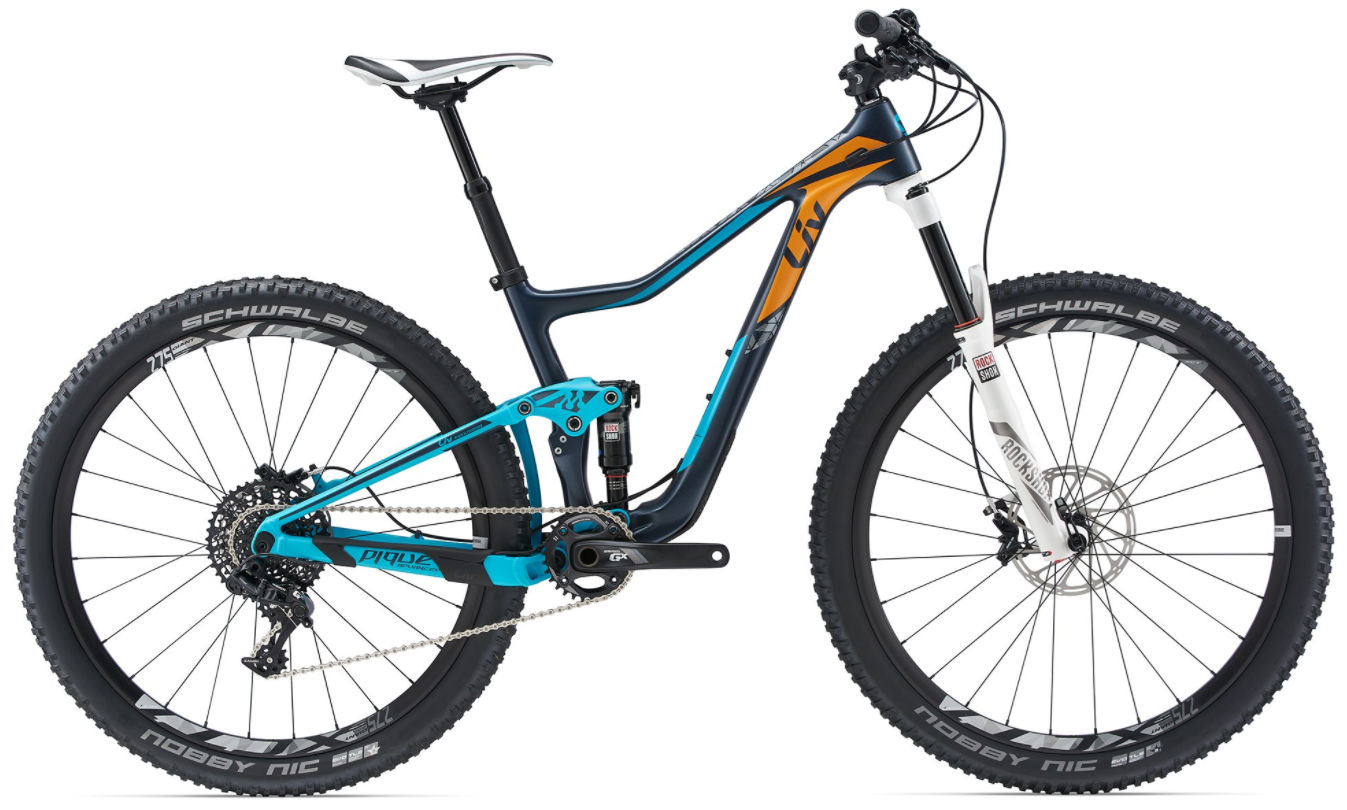

2017 Liv Pique Advanced SX geometry
Full frame geometry for the 2017 Liv Pique Advanced SX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 585 | 368 | 72.5 | 69 | 95 | 550 | 345 | 670 | 25 | 633 | 430 | 1062 | 42 | 84 |
| S | 590 | 382 | 72 | 69 | 100 | 570 | 390 | 700 | 25 | 647 | 430 | 1076 | 42 | 84 |
| M | 599 | 399 | 72 | 69 | 110 | 590 | 440 | 727 | 25 | 668 | 430 | 1097 | 42 | 84 |
| L | 608 | 406 | 72 | 69 | 120 | 600 | 490 | 762 | 25 | 678 | 430 | 1107 | 42 | 84 |
All measurements in millimetres unless marked (°) for angles.
