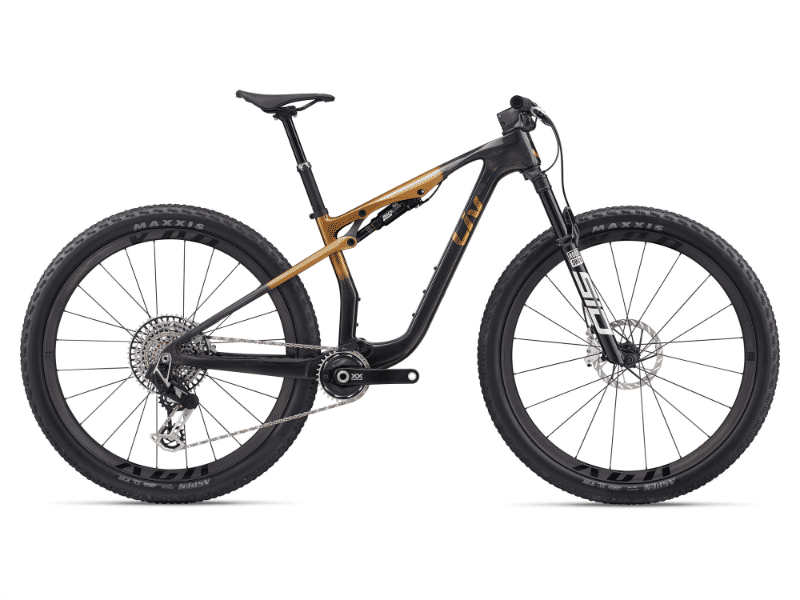

2026 Liv Pique Advanced SL geometry
Full frame geometry for the 2026 Liv Pique Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 399 | 75.5 | 66.5 | 90 | 555 | 400 | 772 | 51 | 437 | 1121 | 44 | 116 |
| S | 607 | 415 | 75.5 | 66.5 | 95 | 572 | 410 | 770 | 51 | 437 | 1138 | 44 | 116 |
| M | 616 | 435 | 75.5 | 66.5 | 105 | 594 | 440 | 765 | 51 | 437 | 1162 | 44 | 116 |
| L | 625 | 450 | 75.5 | 66.5 | 115 | 611 | 470 | 759 | 51 | 437 | 1181 | 44 | 116 |
All measurements in millimetres unless marked (°) for angles.
