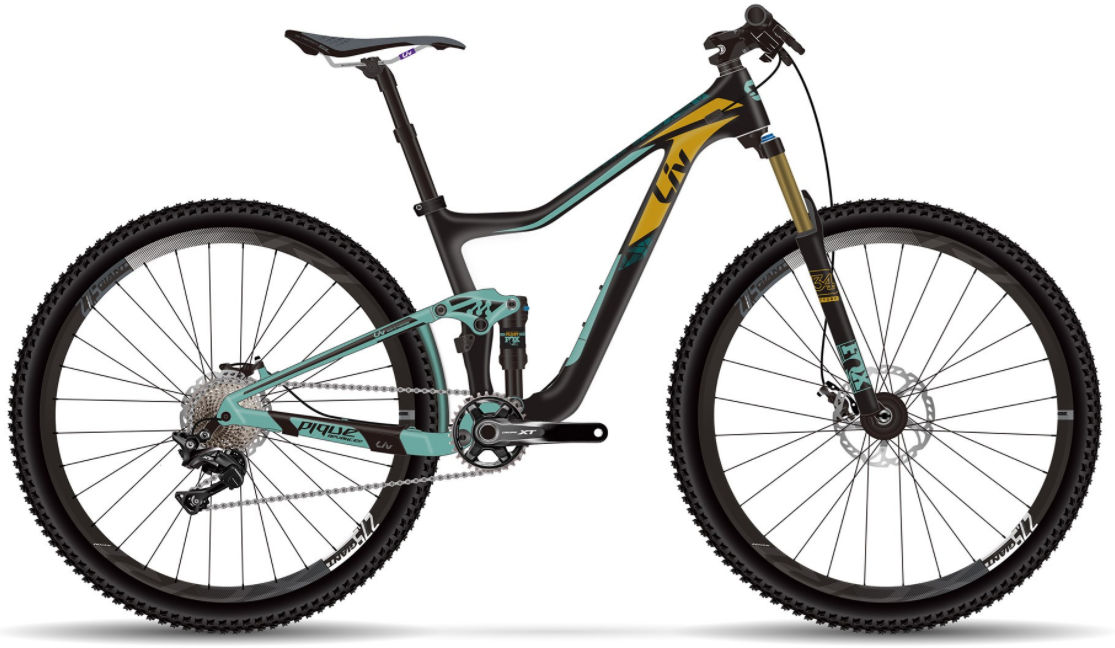

2017 Liv Pique Advanced MKI geometry
Full frame geometry for the 2017 Liv Pique Advanced MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 577 | 379 | 73.5 | 70 | 95 | 550 | 345 | 657 | 25 | 625 | 430 | 1054 | 42 | 84 |
| S | 582 | 392 | 73 | 70 | 100 | 570 | 390 | 687 | 25 | 640 | 430 | 1069 | 42 | 84 |
| M | 591 | 409 | 73 | 70 | 110 | 590 | 440 | 721 | 25 | 660 | 430 | 1089 | 42 | 84 |
| L | 601 | 416 | 73 | 70 | 120 | 600 | 490 | 754 | 25 | 671 | 430 | 1100 | 42 | 84 |
All measurements in millimetres unless marked (°) for angles.
