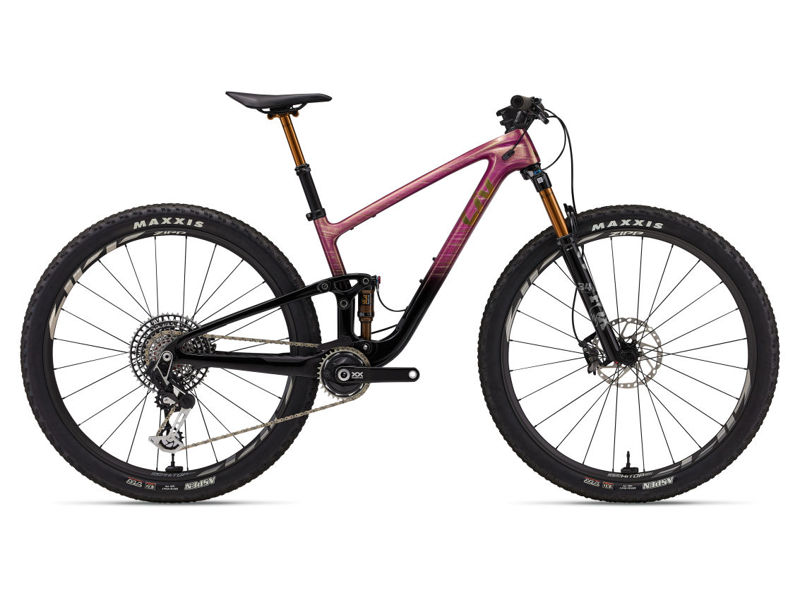

2024 Liv PIQUE ADVANCED 29 geometry
Full frame geometry for the 2024 Liv PIQUE ADVANCED 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 420 | 76 | 67 | 95 | 570 | 410 | 45 | 1137 | 44 | 112.2 |
All measurements in millimetres unless marked (°) for angles.
