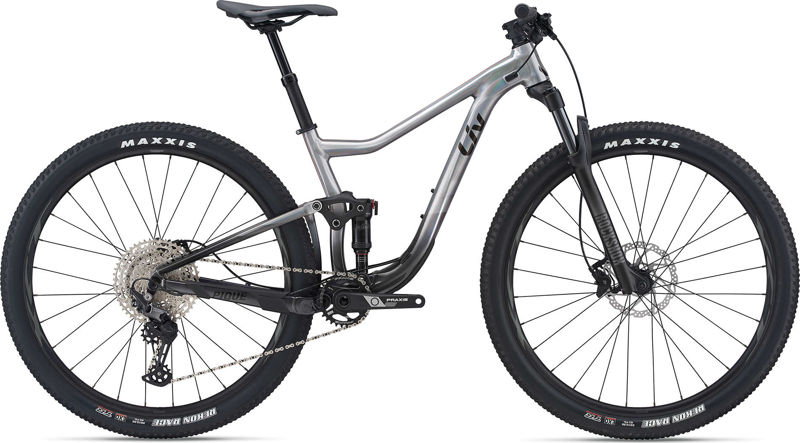

2021 Liv PIQUE 29 geometry
Full frame geometry for the 2021 Liv PIQUE 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 578 | 399 | 74 | 68.5 | 90 | 565 | 390 | 694 | 45 | 438 | 1100 | 51 | 92.9 |
| S | 583 | 413 | 74 | 68.5 | 95 | 580 | 406 | 703 | 45 | 438 | 1115 | 51 | 92.9 |
| M | 587 | 427 | 74 | 68.5 | 100 | 595 | 445 | 724 | 45 | 438 | 1131 | 51 | 92.9 |
| L | 597 | 439 | 74 | 68.5 | 110 | 610 | 482 | 755 | 45 | 438 | 1147 | 51 | 92.9 |
All measurements in millimetres unless marked (°) for angles.
