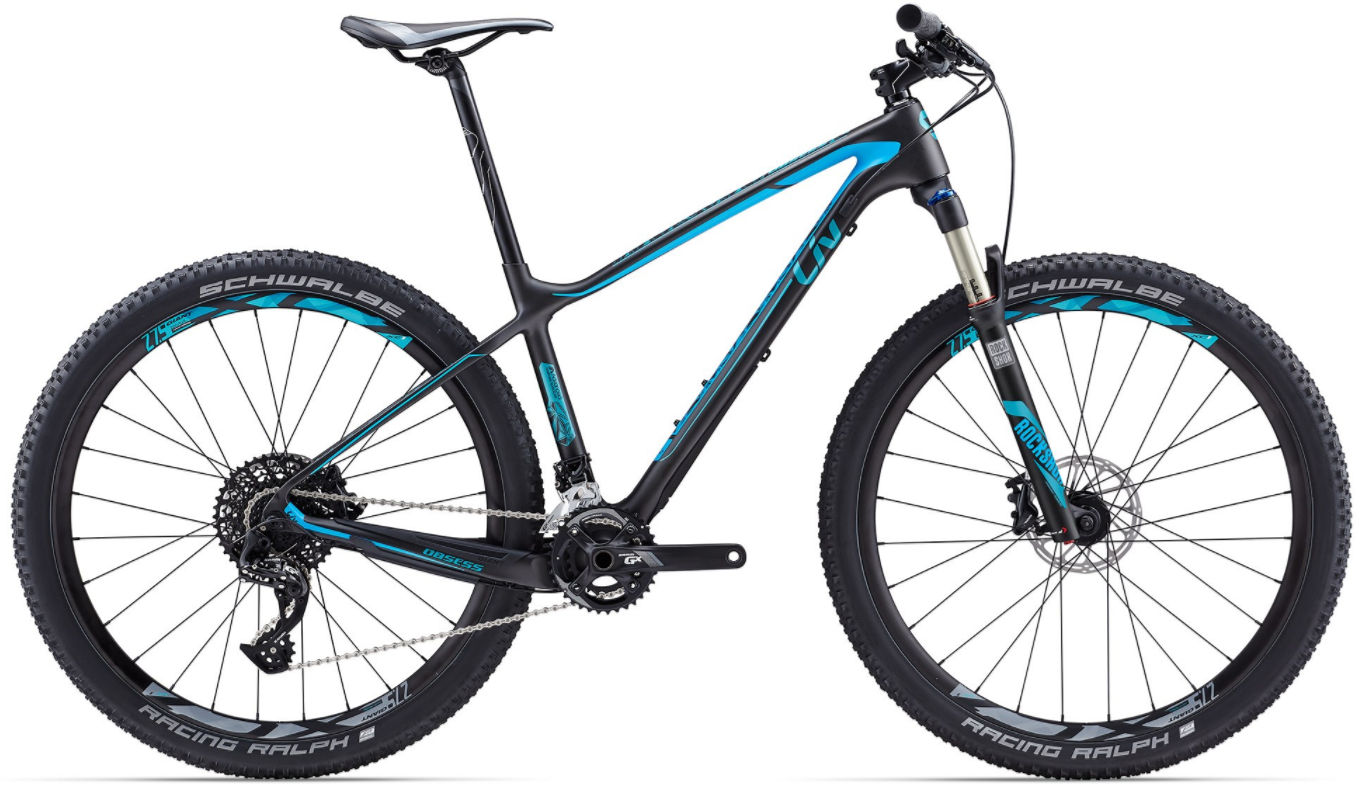

2015 Liv Obsess Advanced geometry
Full frame geometry for the 2015 Liv Obsess Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 583 | 377 | 73.5 | 70 | 95 | 550 | 350 | 667 | 50 | 618 | 430 | 1043 | 42 | 84 |
| S | 587 | 391 | 73 | 70 | 100 | 570 | 400 | 703 | 50 | 633 | 430 | 1058 | 42 | 84 |
| M | 597 | 408 | 73 | 70 | 110 | 590 | 440 | 724 | 50 | 653 | 430 | 1078 | 42 | 84 |
| L | 615 | 412 | 73 | 70 | 130 | 600 | 490 | 756 | 50 | 664 | 430 | 1089 | 42 | 84 |
All measurements in millimetres unless marked (°) for angles.
