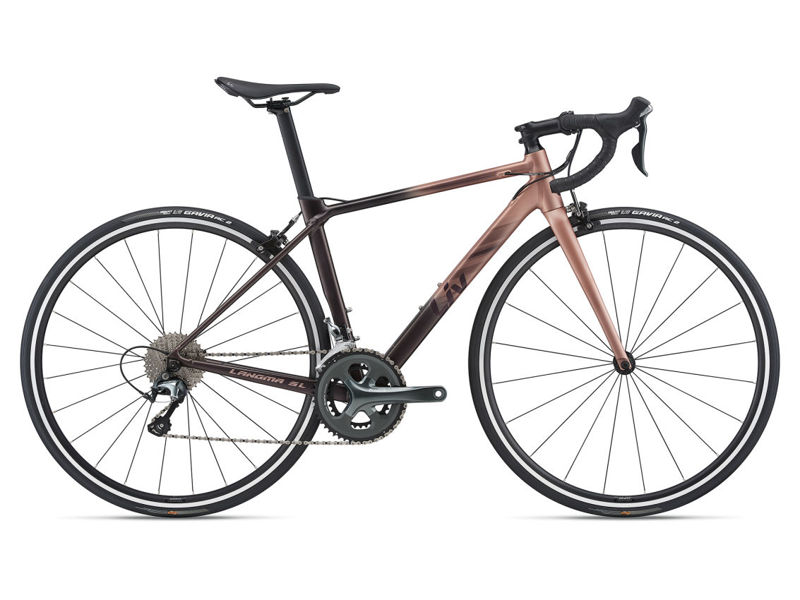

2021 Liv Langma SL geometry
Full frame geometry for the 2021 Liv Langma SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 503 | 362 | 75 | 70.5 | 110 | 497 | 385 | 662 | 70 | 405 | 966 | 49 | 68.8 |
| XS | 509 | 371 | 75 | 71 | 115 | 507 | 410 | 680 | 70 | 405 | 972 | 49 | 65.6 |
| S | 527 | 378 | 74.5 | 72 | 130 | 524 | 445 | 710 | 70 | 405 | 974 | 45 | 63.5 |
All measurements in millimetres unless marked (°) for angles.
