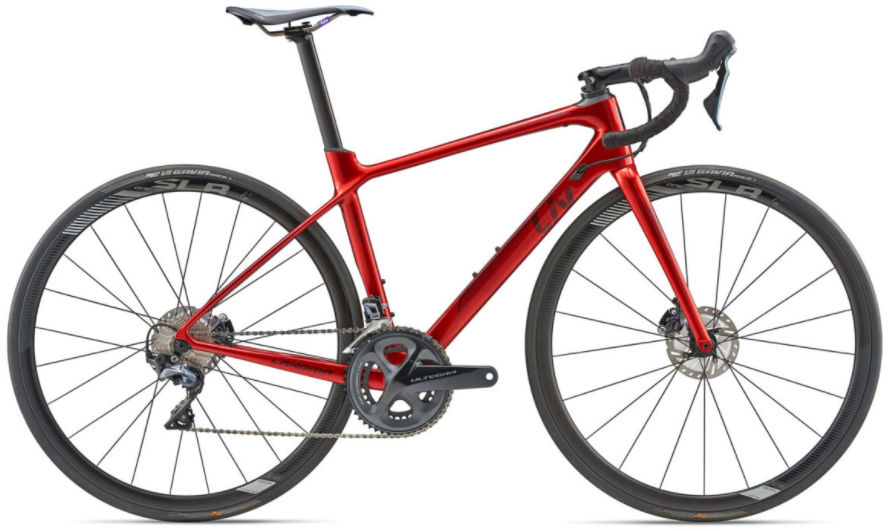

2018 Liv Langma Advanced Pro Disc geometry
Full frame geometry for the 2018 Liv Langma Advanced Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 492 | 365 | 75 | 70.5 | 100 | 497 | 385 | 664 | 70 | 571 | 405 | 966 | 49 | 69 |
| XS | 508 | 371 | 75 | 71 | 115 | 507 | 410 | 679 | 70 | 577 | 405 | 972 | 49 | 66 |
| S | 525 | 378 | 74.5 | 72 | 130 | 524 | 445 | 701 | 68 | 579 | 405 | 974 | 45 | 64 |
| M | 546 | 384 | 74 | 72.5 | 150 | 540 | 480 | 728 | 68 | 586 | 405 | 981 | 45 | 60 |
| L | 565 | 388 | 73.5 | 72.5 | 170 | 555 | 515 | 754 | 68 | 596 | 405 | 991 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
