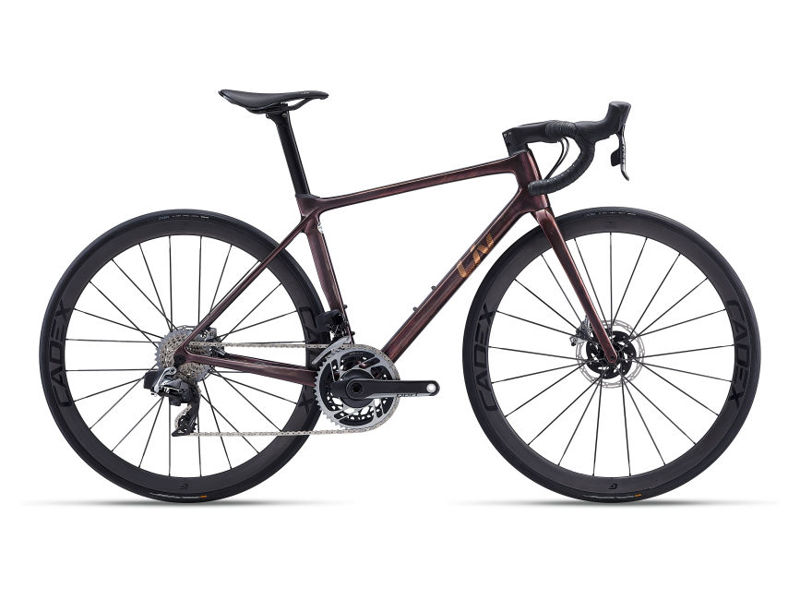

2022 Liv Langma Advance SL geometry
Full frame geometry for the 2022 Liv Langma Advance SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 498.8 | 364.4 | 75 | 70.5 | 100 | — | — | 664 | 70 | 405 | 966 | 49 | 68.8 |
| XS | 516.5 | 369.6 | 75 | 71 | 120 | 508 | 420 | 700 | 72 | 405 | 973 | 49 | 67.8 |
| S | 531.8 | 376.5 | 74.5 | 72 | 135 | 524 | 450 | 730 | 69.5 | 405 | 977.2 | 49 | 61.4 |
| M | 552.6 | 381.5 | 74 | 72.5 | 155 | 540 | 480 | 760 | 69.5 | 405 | 984.2 | 49 | 58.2 |
| L | 569.2 | 386.4 | 73.5 | 72.5 | 175 | 555 | 510 | 790 | 67 | 405 | 995.5 | 49 | 58.2 |
All measurements in millimetres unless marked (°) for angles.
