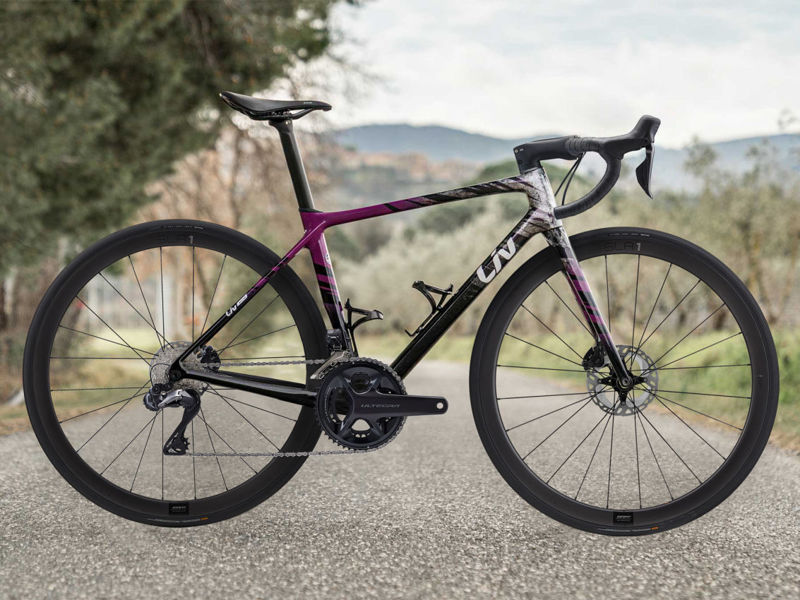

2024 Liv Langma Advance Pro Disc geometry
Full frame geometry for the 2024 Liv Langma Advance Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 499 | 364 | 75 | 70 | 498 | 390 | 680 | 72 | 405 | 970 | 49 | 74.3 |
| XS | 517 | 370 | 75 | 71 | 508 | 420 | 700 | 72 | 405 | 973 | 49 | 67.8 |
| S | 532 | 377 | 74.5 | 72 | 524 | 450 | 730 | 70 | 405 | 977 | 49 | 61.4 |
All measurements in millimetres unless marked (°) for angles.
