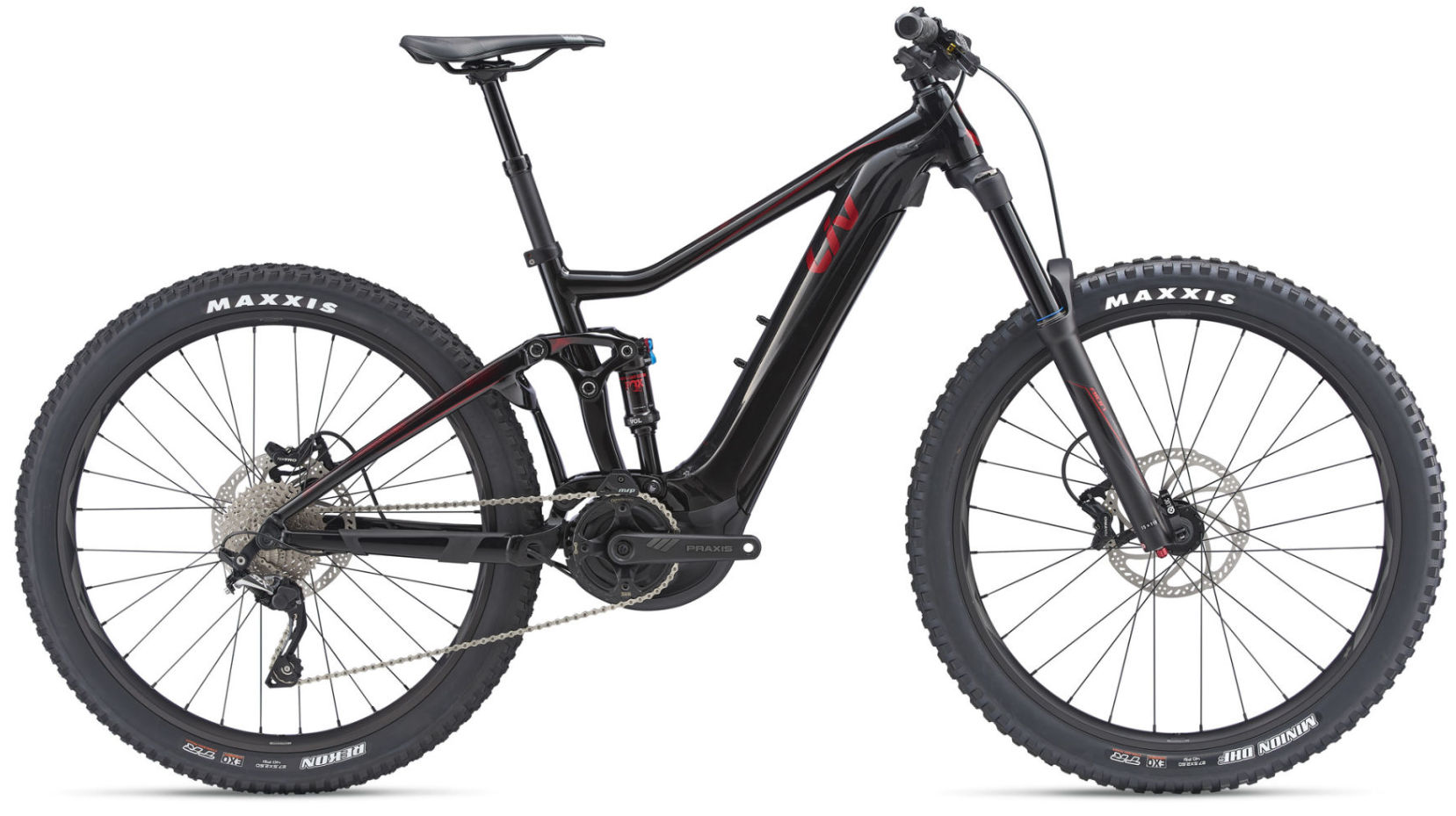

2018 Liv Intrigue E + geometry
Full frame geometry for the 2018 Liv Intrigue E +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 579 | 404 | 74.5 | 66.5 | 95 | 565 | 380 | 707 | 15 | 470 | 1169 | 46 | 109 |
| S | 584 | 418 | 74.5 | 66.5 | 100 | 580 | 406 | 725 | 15 | 470 | 1185 | 46 | 109 |
| M | 588 | 431 | 74.5 | 66.5 | 105 | 595 | 445 | 753 | 15 | 470 | 1201 | 46 | 109 |
| L | 607 | 451 | 74.5 | 66.5 | 125 | 620 | 482 | 781 | 15 | 470 | 1229 | 46 | 109 |
All measurements in millimetres unless marked (°) for angles.
