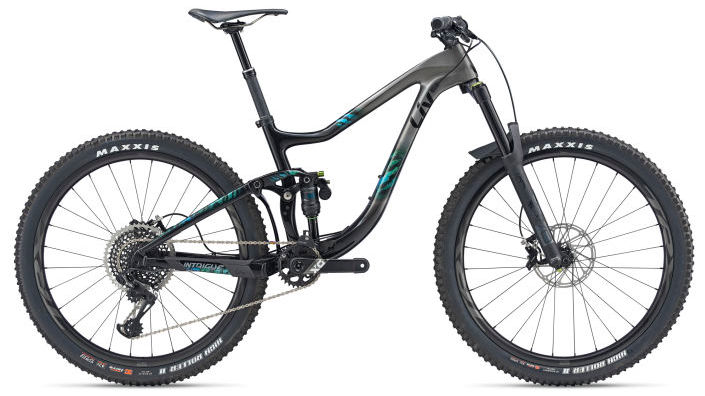

2019 Liv Intrigue Advanced geometry
Full frame geometry for the 2019 Liv Intrigue Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 577 | 405 | 74.5 | 66.5 | 95 | 565 | 380 | 691 | 15 | 438 | 1135 | 44 | 110 |
| S | 582 | 418 | 74.5 | 66.5 | 100 | 580 | 406 | 707 | 15 | 438 | 1151 | 44 | 110 |
| M | 587 | 432 | 74.5 | 66.5 | 105 | 595 | 445 | 735 | 15 | 438 | 1167 | 44 | 110 |
| L | 605 | 452 | 74.5 | 66.5 | 125 | 620 | 482 | 751 | 15 | 438 | 1195 | 44 | 110 |
All measurements in millimetres unless marked (°) for angles.
