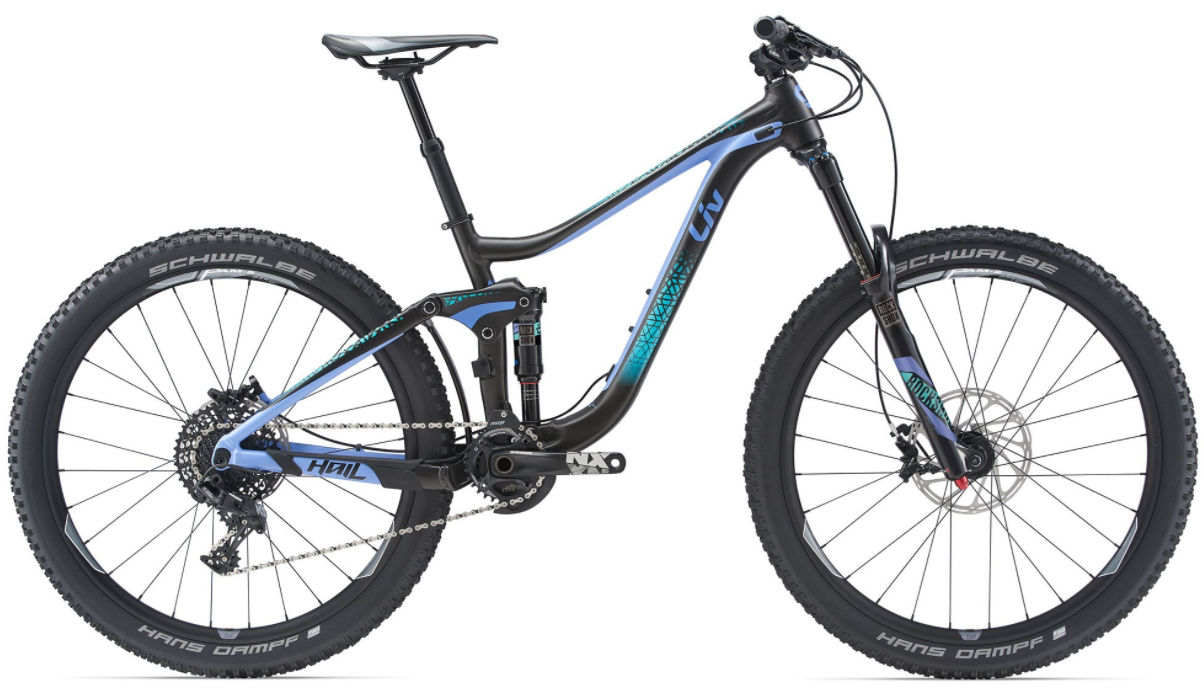

2017 Liv Hail geometry
Full frame geometry for the 2017 Liv Hail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 576 | 404 | 74 | 66 | 95 | 570 | 365 | 710 | 5 | 710 | 435 | 1145 | 46 | 109 |
| S | 580 | 418 | 74 | 66 | 100 | 585 | 380 | 717 | 5 | 725 | 435 | 1160 | 46 | 109 |
| M | 594 | 439 | 74 | 66 | 115 | 610 | 431 | 755 | 5 | 753 | 435 | 1188 | 46 | 109 |
| L | 608 | 450 | 74 | 66 | 130 | 625 | 482 | 795 | 5 | 770 | 435 | 1205 | 46 | 109 |
All measurements in millimetres unless marked (°) for angles.
