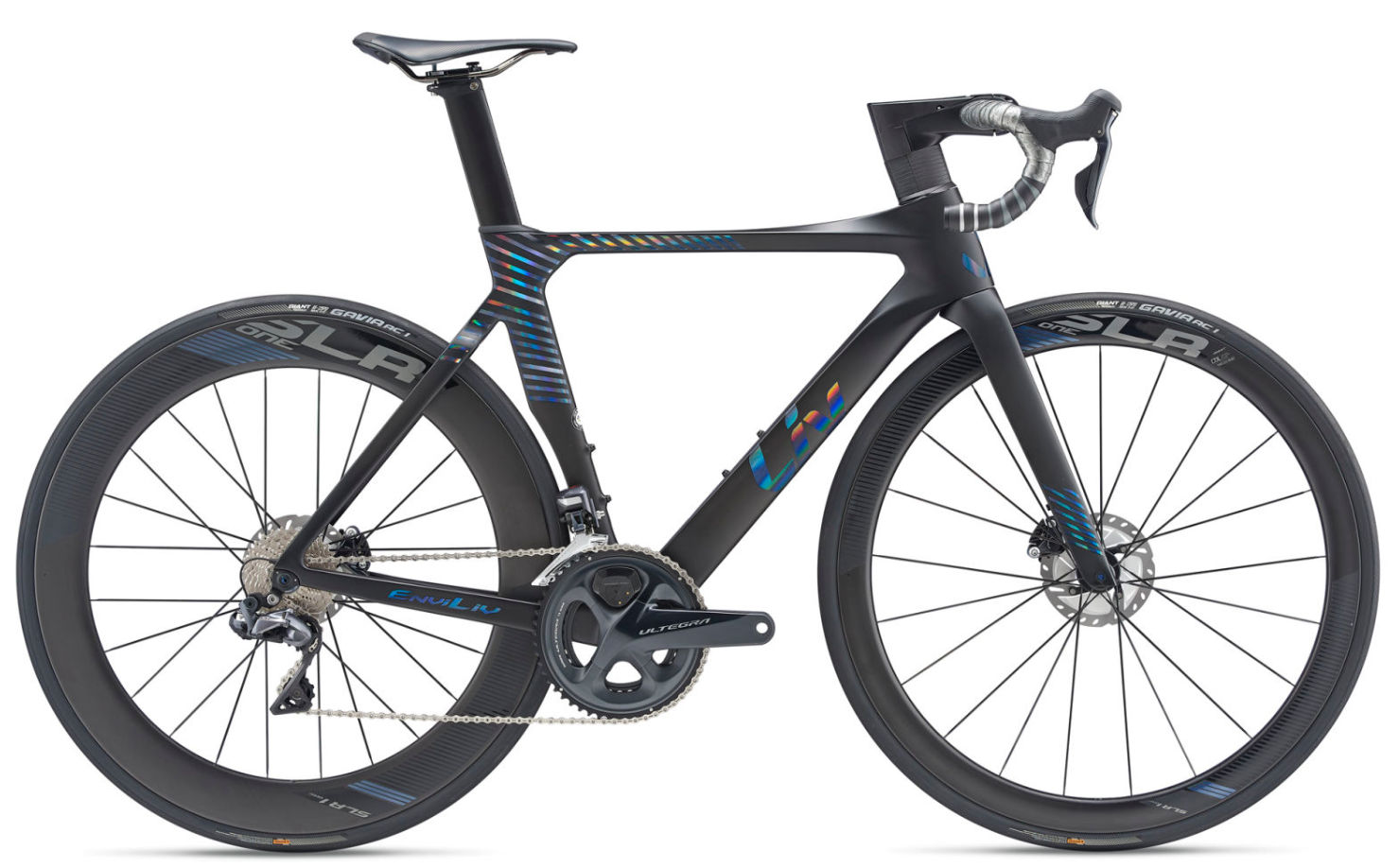

2019 Liv EnviLiv Advanced Pro Disc geometry
Full frame geometry for the 2019 Liv EnviLiv Advanced Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 371 | 75 | 71 | 112 | 507 | 465 | 722 | 70 | 405 | 972 | 49 | 66 |
| S | 525 | 378 | 74.5 | 72 | 127 | 524 | 500 | 757 | 68 | 405 | 974 | 45 | 64 |
| M | 546 | 384 | 74 | 72.5 | 147 | 540 | 520 | 775 | 68 | 405 | 981 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
