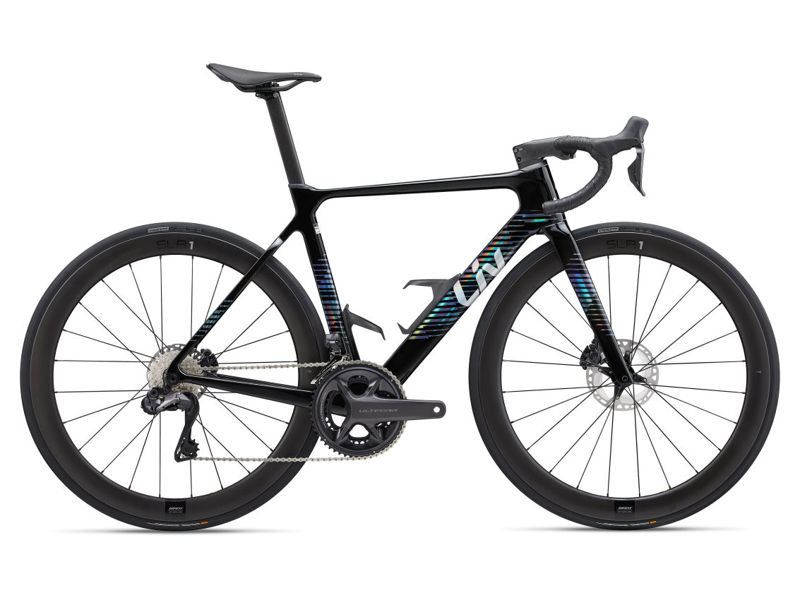

2023 Liv Enviliv Advance Pro geometry
Full frame geometry for the 2023 Liv Enviliv Advance Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 499 | 364 | 75 | 70 | 105 | 498 | 440 | 719 | 72 | 405 | 970 | 49 | 73 |
| XS | 517 | 370 | 75 | 71 | 120 | 508 | 470 | 734 | 72 | 405 | 973 | 49 | 66 |
| S | 532 | 377 | 74.5 | 72 | 135 | 524 | 500 | 752 | 70 | 405 | 977 | 49 | 60 |
| M | 553 | 382 | 74 | 72.5 | 155 | 540 | 530 | 768 | 70 | 405 | 984 | 49 | 57 |
| L | 569 | 386 | 73.5 | 72.5 | 175 | 555 | 560 | 786 | 67 | 405 | 996 | 49 | 57 |
All measurements in millimetres unless marked (°) for angles.
