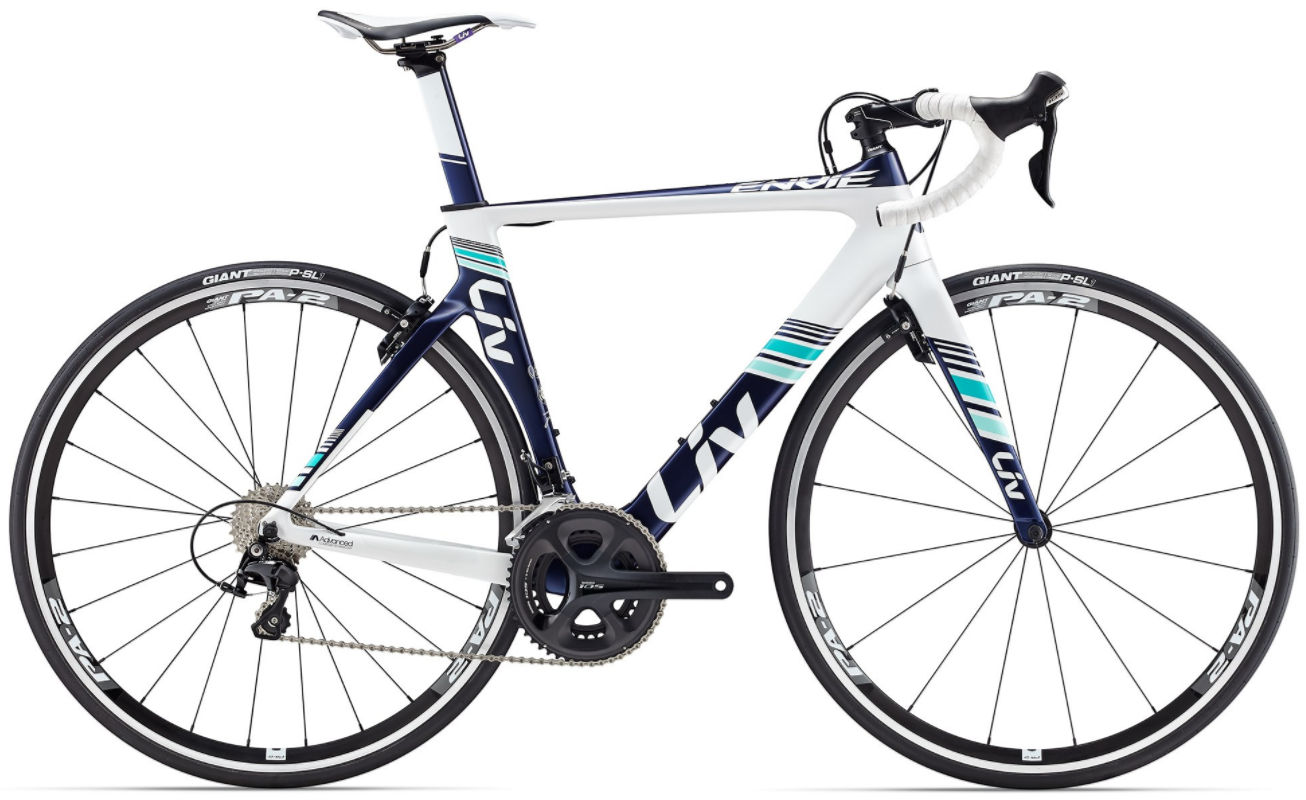

2014 Liv Envie Advanced geometry
Full frame geometry for the 2014 Liv Envie Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 505 | 365 | 75 | 70.5 | 110 | 500 | 430 | 721 | 70 | 570 | 405 | 965 | 45 | 73 |
| XS | 525 | 369 | 74.5 | 71 | 130 | 515 | 465 | 736 | 70 | 578 | 405 | 973 | 45 | 70 |
| S | 543 | 371 | 73.5 | 72 | 145 | 532 | 500 | 763 | 70 | 576 | 405 | 971 | 45 | 64 |
| M | 561 | 378 | 73 | 73 | 160 | 550 | 520 | 780 | 70 | 580 | 405 | 975 | 45 | 57 |
| L | 575 | 383 | 72.5 | 73 | 180 | 565 | 545 | 805 | 65 | 590 | 405 | 986 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
