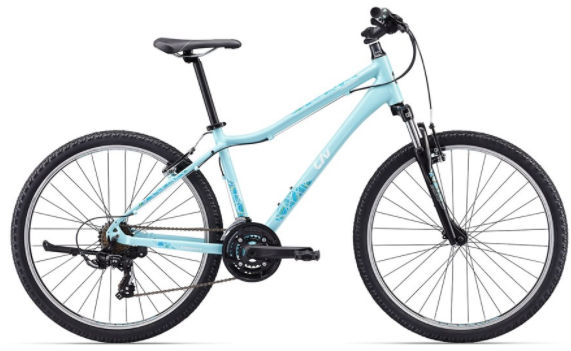

2017 Liv Enchant geometry
Full frame geometry for the 2017 Liv Enchant, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 547 | 363 | 75 | 69 | 110 | 510 | 621 | 600 | 424 | 1024 |
| XS | 570 | 377 | 74 | 70 | 130 | 540 | 633 | 611 | 424 | 1035 |
| S | 589 | 396 | 74 | 70 | 150 | 565 | 659 | 637 | 424 | 1061 |
| M | 617 | 413 | 74 | 70 | 180 | 590 | 690 | 664 | 424 | 1088 |
All measurements in millimetres unless marked (°) for angles.
