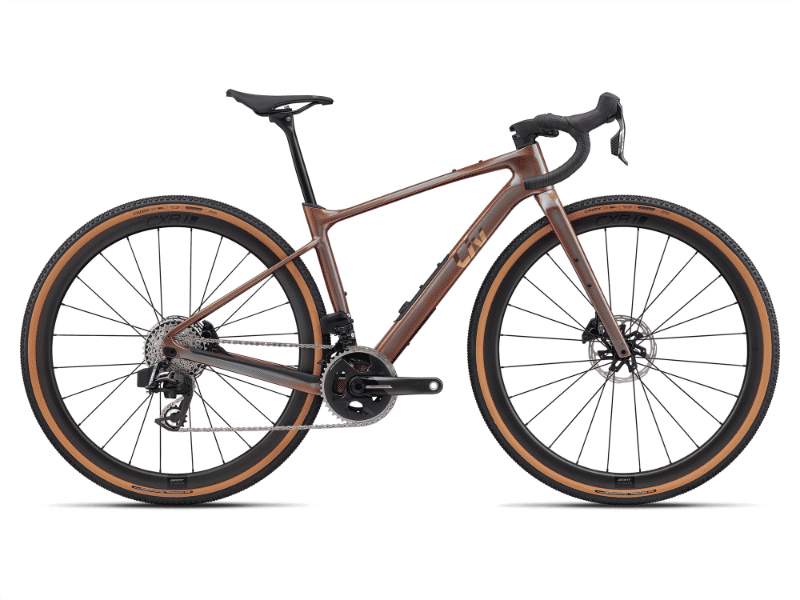

2026 Liv Devote Advanced Pro geometry
Full frame geometry for the 2026 Liv Devote Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 380 | 74.5 | 70 | 90 | 525 | 390 | 681 | 80 | 425 | 1012 | 50 | 78.4 |
| S | 544 | 384 | 74.5 | 70.5 | 110 | 535 | 420 | 708 | 80 | 425 | 1019 | 50 | 75 |
| M | 574 | 386 | 74.5 | 71 | 140 | 545 | 465 | 748 | 80 | 425 | 1026 | 50 | 71.6 |
| L | 593 | 391 | 74.5 | 71 | 160 | 555 | 500 | 779 | 80 | 430 | 1043 | 50 | 71.6 |
All measurements in millimetres unless marked (°) for angles.
