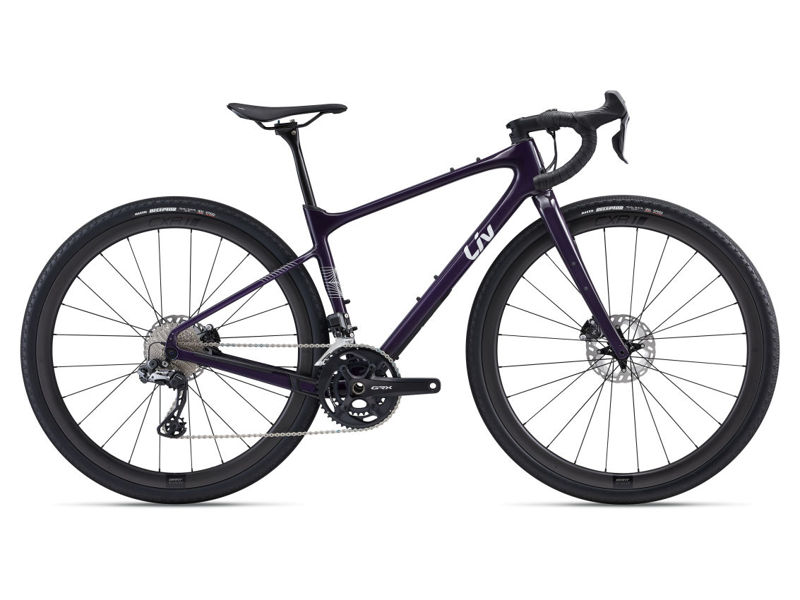

2022 Liv Devote Advance geometry
Full frame geometry for the 2022 Liv Devote Advance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 378 | 75 | 70.5 | 95 | 515 | 390 | 683 | 80 | 430 | 1013 | 50 | 75.9 |
| S | 558 | 376 | 75 | 70.5 | 125 | 525 | 420 | 711 | 80 | 430 | 1020 | 50 | 75.9 |
| M | 588 | 372 | 74.5 | 71 | 155 | 535 | 465 | 749 | 80 | 430 | 1022 | 50 | 72.5 |
| L | 612 | 380 | 74.5 | 71 | 180 | 550 | 500 | 779 | 80 | 430 | 1039 | 50 | 72.5 |
All measurements in millimetres unless marked (°) for angles.
