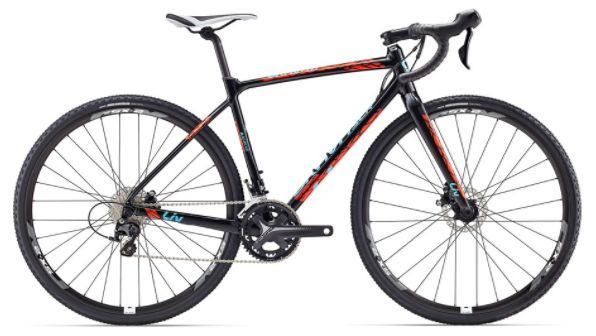

2014 Liv Brava SLR geometry
Full frame geometry for the 2014 Liv Brava SLR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 370 | 74.5 | 70.5 | 115 | 515 | 445 | 740 | 60 | 590 | 430 | 1013 | 50 | 72 |
| S | 543 | 374 | 74 | 71 | 135 | 530 | 475 | 765 | 60 | 596 | 430 | 1019 | 50 | 68 |
| M | 562 | 389 | 74 | 71 | 155 | 550 | 505 | 791 | 60 | 617 | 430 | 1040 | 50 | 68 |
| L | 583 | 398 | 74 | 71.5 | 175 | 565 | 520 | 806 | 60 | 628 | 430 | 1051 | 50 | 65 |
All measurements in millimetres unless marked (°) for angles.
