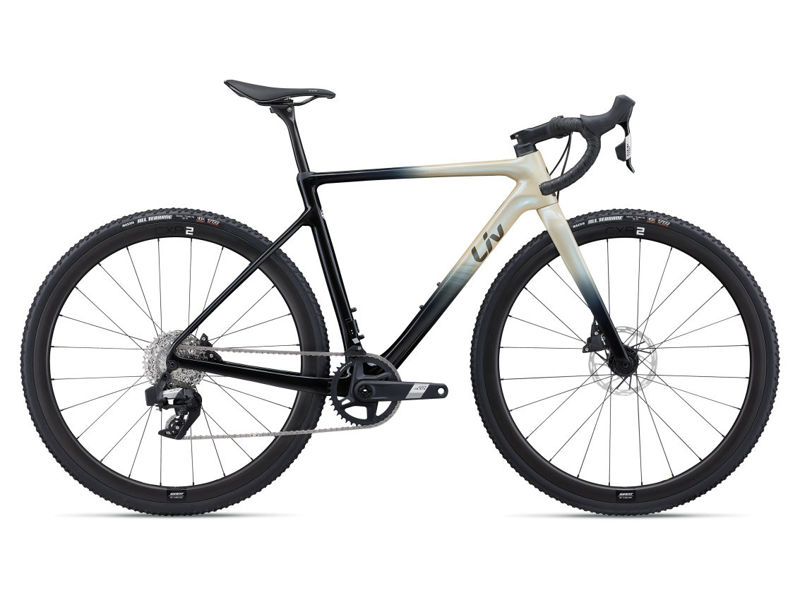

2024 Liv Brava Advance Pro geometry
Full frame geometry for the 2024 Liv Brava Advance Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 363 | 74 | 70.3 | 108 | 510 | 490 | 60 | 1004 | 50 | 72.9 |
| S | 531 | 368 | 74 | 71 | 123 | 520 | 505 | 60 | 1009 | 50 | 68.3 |
| M | 547 | 373 | 73.5 | 71.5 | 138 | 535 | 520 | 60 | 1014 | 50 | 65.1 |
| L | 566 | 377 | 73 | 71.5 | 158 | 550 | 535 | 60 | 1025 | 50 | 65.1 |
All measurements in millimetres unless marked (°) for angles.
