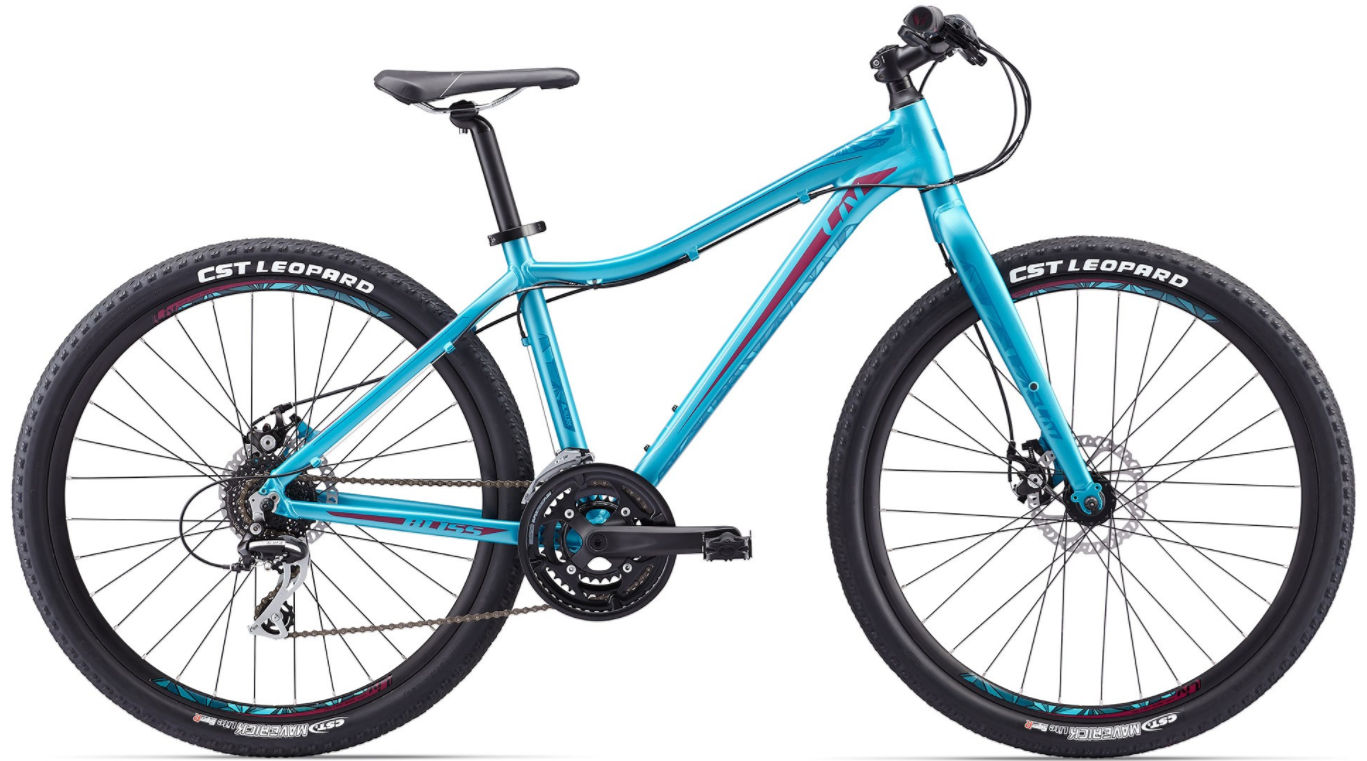

2017 Liv Bliss Lite geometry
Full frame geometry for the 2017 Liv Bliss Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 588 | 377 | 74 | 69.5 | 95 | 545 | 635 | 621 | 435 | 1056 |
| S | 602 | 392 | 73.5 | 69.5 | 110 | 570 | 675 | 641 | 435 | 1076 |
| M | 625 | 404 | 73 | 69.4 | 135 | 595 | 711 | 662 | 435 | 1097 |
All measurements in millimetres unless marked (°) for angles.
