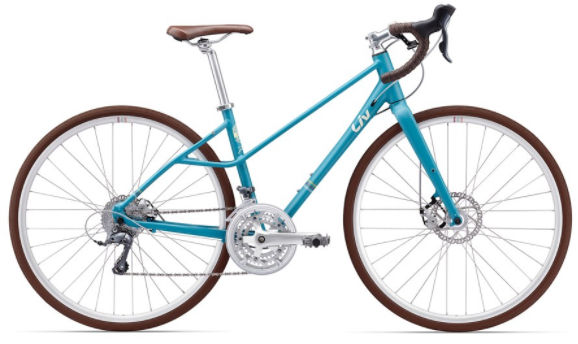

2016 Liv BeLiv geometry
Full frame geometry for the 2016 Liv BeLiv, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 512 | 338 | 75 | 70 | 130 | 475 | 604 | 556 | 420 | 976 |
| XS | 540 | 355 | 75 | 70 | 135 | 500 | 607 | 579 | 430 | 1009 |
| S | 556 | 360 | 74.5 | 70.5 | 150 | 515 | 608 | 585 | 430 | 1015 |
| M | 587 | 362 | 74.5 | 71 | 180 | 525 | 624 | 592 | 430 | 1022 |
| L | 615 | 374 | 74.5 | 71 | 210 | 545 | 640 | 614 | 430 | 1044 |
All measurements in millimetres unless marked (°) for angles.
