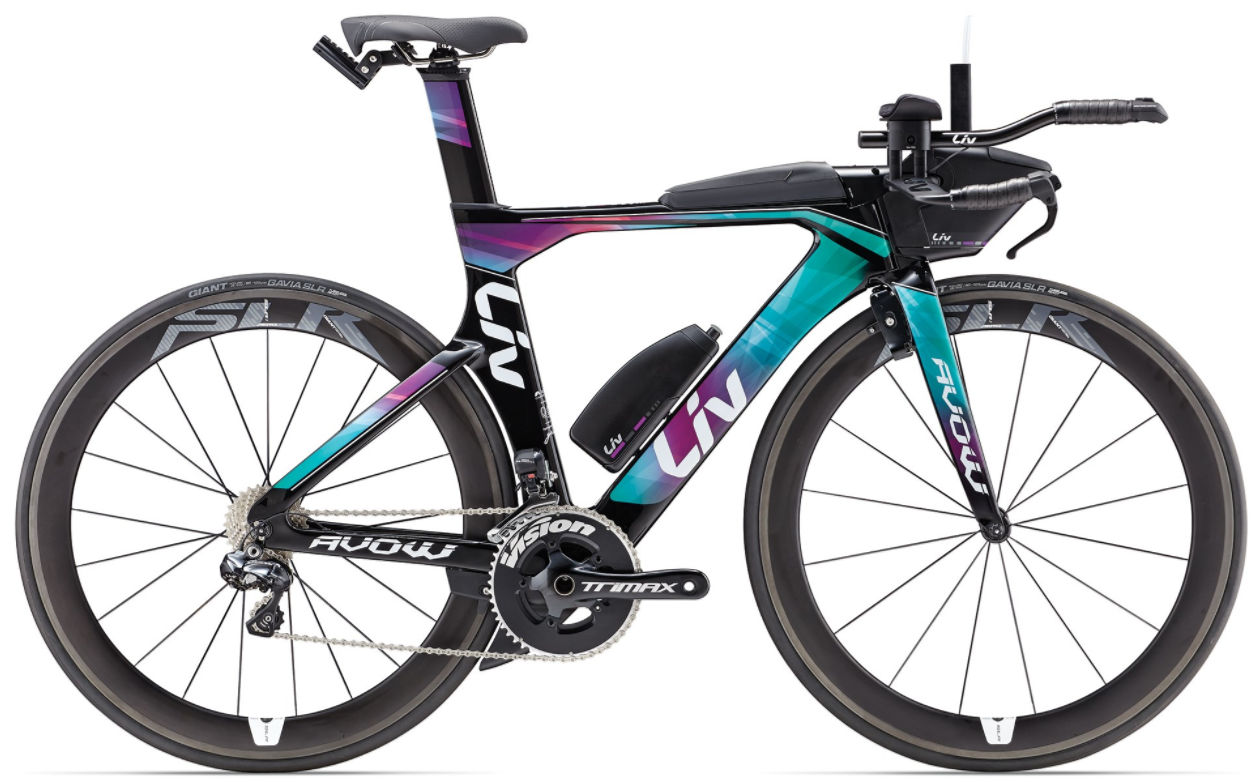

2015 Liv Avow Advanced Pro geometry
Full frame geometry for the 2015 Liv Avow Advanced Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 442 | 378 | 77 | 71.5 | 80 | 480 | 450 | 708 | 64 | 553 | 405 | 949 | 40 | 62 |
| XS | 490 | 387 | 77 | 72 | 80 | 500 | 480 | 740 | 75 | 568 | 405 | 961 | 40 | 97 |
| S | 504 | 398 | 77 | 72.5 | 95 | 515 | 510 | 767 | 75 | 581 | 405 | 974 | 40 | 64 |
| M | 534 | 417 | 77 | 72.5 | 125 | 540 | 530 | 788 | 75 | 608 | 405 | 1001 | 40 | 64 |
All measurements in millimetres unless marked (°) for angles.
