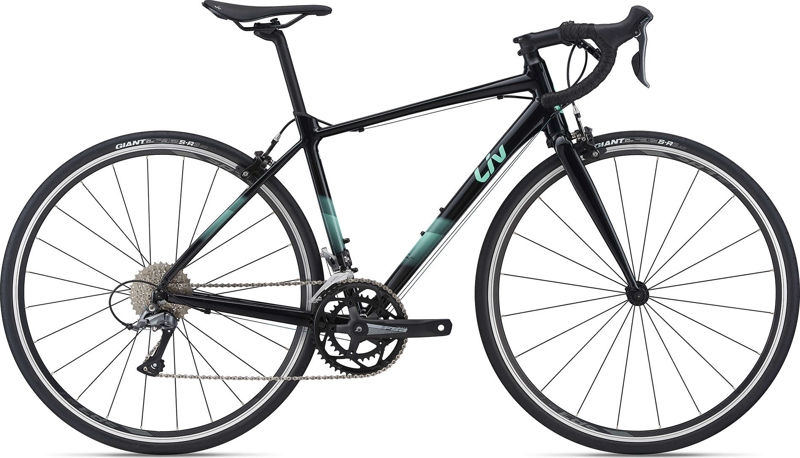

2022 Liv Avail geometry
Full frame geometry for the 2022 Liv Avail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 372 | 75 | 70.5 | 135 | 515 | 430 | 687 | 70 | 420 | 998 | 45 | 73 |
| S | 550 | 372 | 74.5 | 72 | 150 | 525 | 465 | 716 | 70 | 420 | 990 | 45 | 63.5 |
| M | 569 | 377 | 74 | 72 | 170 | 540 | 500 | 744 | 70 | 420 | 1000 | 45 | 63.5 |
| L | 588 | 386 | 74 | 72 | 190 | 555 | 535 | 772 | 70 | 420 | 1016 | 45 | 63.5 |
All measurements in millimetres unless marked (°) for angles.
