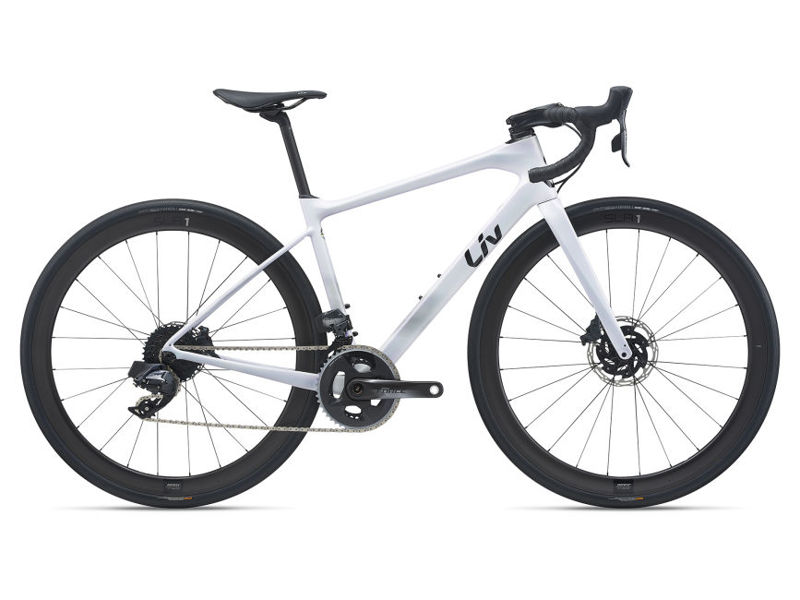

2022 Liv Avail Advance Pro geometry
Full frame geometry for the 2022 Liv Avail Advance Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 368 | 74.5 | 70.5 | 125 | 515 | 400 | 684 | 75 | 420 | 995 | 50 | 71 |
| S | 547 | 373 | 74.5 | 71.5 | 145 | 525 | 435 | 716 | 73 | 420 | 998 | 50 | 65 |
| M | 568 | 377 | 74 | 72 | 165 | 540 | 470 | 745 | 73 | 420 | 1004 | 50 | 62 |
| L | 587 | 387 | 74 | 72 | 185 | 555 | 505 | 772 | 73 | 420 | 1020 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
