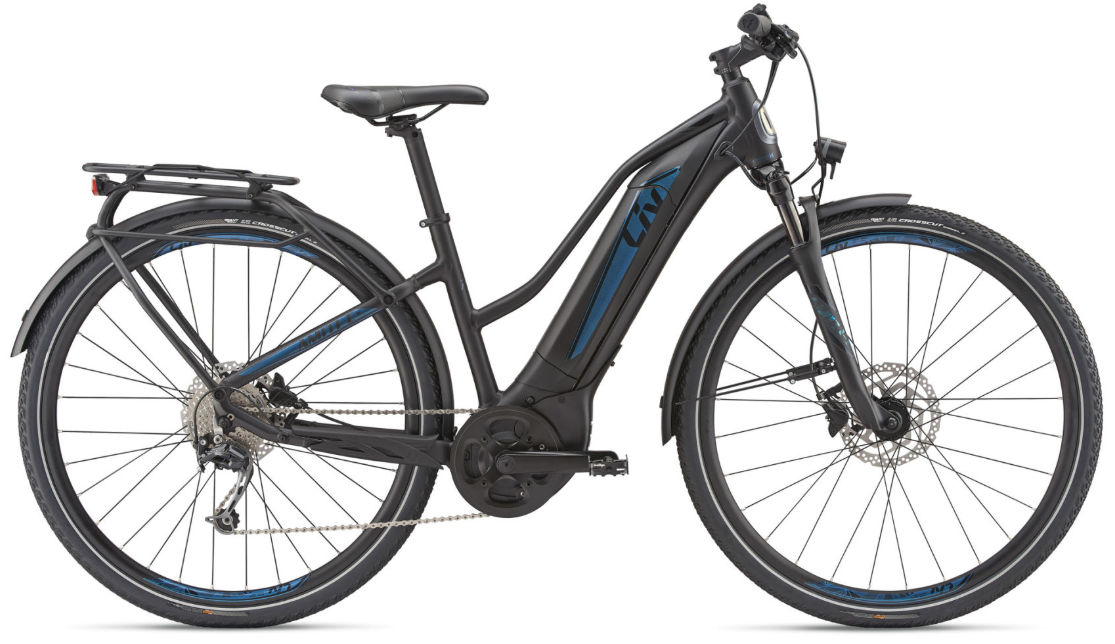

2019 Liv Amiti E + geometry
Full frame geometry for the 2019 Liv Amiti E +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 619 | 382 | 73.5 | 69.5 | 135 | 565 | 420 | 596 | 60 | 470 | 1111 | 42 | 91 |
| XS | 619 | 367 | 74 | 69.5 | 135 | 545 | 370 | 616 | 60 | 470 | 1097 | 42 | 91 |
| M | 638 | 396 | 73.5 | 69.5 | 155 | 585 | 470 | 584 | 60 | 470 | 1133 | 42 | 91 |
| L | 657 | 406 | 73 | 69.5 | 175 | 605 | 520 | 570 | 60 | 470 | 1148 | 42 | 91 |
All measurements in millimetres unless marked (°) for angles.
