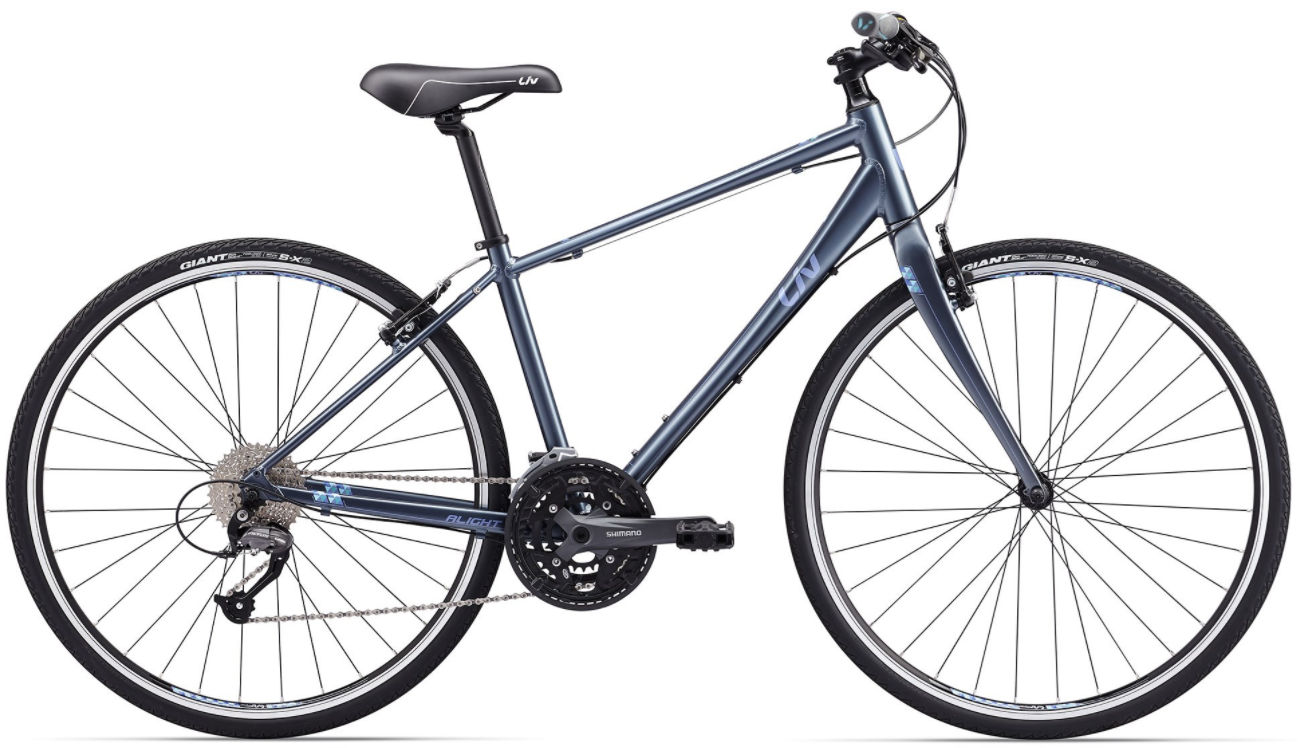

2016 Liv Alight geometry
Full frame geometry for the 2016 Liv Alight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 566 | 383 | 74 | 70 | 145 | 545 | 591 | 616 | 451 | 1067 |
| S | 583 | 388 | 73.5 | 70.5 | 160 | 560 | 590 | 622 | 451 | 1073 |
| M | 599 | 392 | 73 | 71 | 175 | 575 | 591 | 626 | 451 | 1077 |
| L | 613 | 403 | 73 | 71 | 190 | 590 | 587 | 642 | 451 | 1093 |
All measurements in millimetres unless marked (°) for angles.
