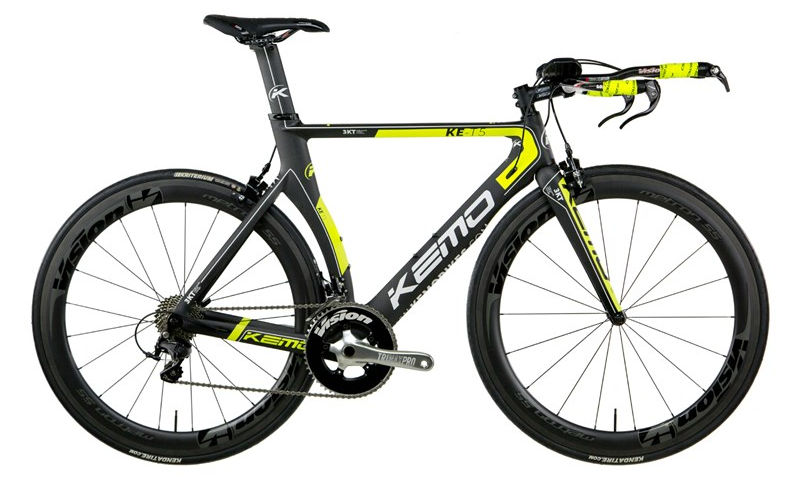

2014 Kemo KE-T5 geometry
Full frame geometry for the 2014 Kemo KE-T5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 508 | 394 | 76.2 | 72 | 105 | 507 | 515 | 755 | 70 | 576 | 395 | 961 | 43 | 63 |
| M | 517 | 418 | 76.2 | 72 | 115 | 538 | 545 | 775 | 70 | 604 | 395 | 988 | 43 | 63 |
| L | 535 | 420 | 76.2 | 73 | 130 | 553 | 565 | 792 | 70 | 611 | 395 | 996 | 43 | 57 |
| XL | 554 | 430 | 76.2 | 73 | 150 | 568 | 585 | 812 | 70 | 627 | 395 | 1012 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
