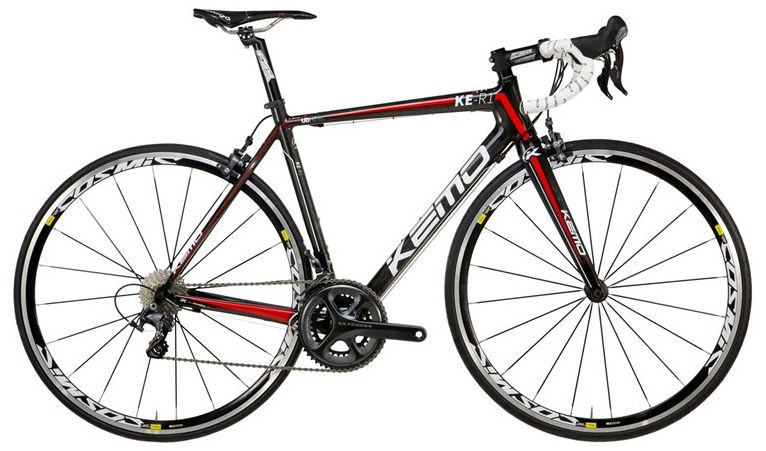

2014 Kemo KE-R1 geometry
Full frame geometry for the 2014 Kemo KE-R1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 504 | 367 | 74 | 71.5 | 125 | 512 | 460 | 772 | 72 | 566 | 403 | 957 | 45 | 64 |
| 48 | 504 | 367 | 74 | 71.5 | 125 | 512 | 480 | 772 | 72 | 566 | 403 | 957 | 45 | 64 |
| 50 | 511 | 378 | 74.5 | 72 | 130 | 520 | 500 | 778 | 72 | 574 | 403 | 966 | 45 | 61 |
| 52 | 514 | 378 | 73.5 | 72 | 135 | 530 | 520 | 783 | 71 | 574 | 403 | 967 | 45 | 61 |
| 54 | 523 | 380 | 73 | 72 | 145 | 540 | 540 | 792 | 70 | 579 | 403 | 972 | 45 | 61 |
| 56 | 537 | 391 | 73 | 72 | 160 | 555 | 560 | 807 | 70 | 595 | 403 | 987 | 45 | 61 |
| 58 | 546 | 408 | 73 | 72 | 170 | 575 | 580 | 816 | 70 | 615 | 403 | 1008 | 45 | 61 |
| 61 | 556 | 425 | 72.5 | 72 | 180 | 600 | 610 | 826 | 70 | 634 | 403 | 1027 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
