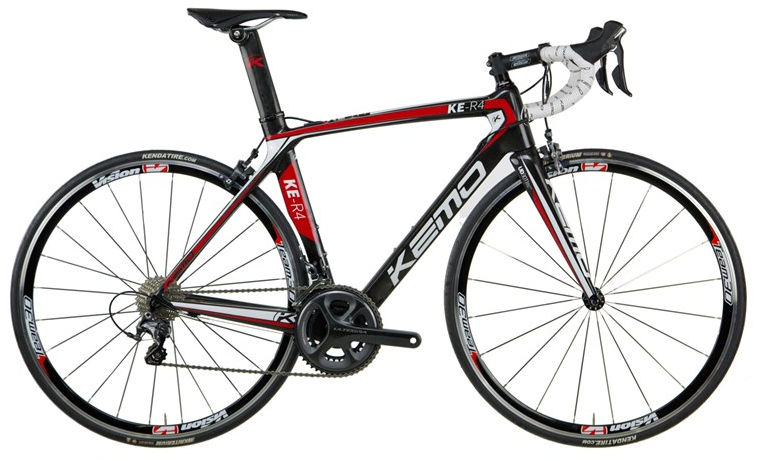

2014 Kemo KE-R4 geometry
Full frame geometry for the 2014 Kemo KE-R4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 359 | 74.5 | 72 | 120 | 505 | 443 | 729 | 70 | 560 | 406 | 956 | 48 | 58 |
| S | 522 | 369 | 73.5 | 72 | 125 | 525 | 463 | 739 | 68 | 571 | 406 | 968 | 48 | 58 |
| M | 543 | 379 | 73.5 | 72.5 | 145 | 540 | 505 | 766 | 68 | 583 | 406 | 979 | 48 | 55 |
| L | 557 | 389 | 73 | 72.5 | 160 | 560 | 525 | 783 | 68 | 598 | 406 | 994 | 48 | 55 |
| XL | 576 | 394 | 72.5 | 73 | 180 | 575 | 555 | 800 | 66 | 604 | 406 | 1001 | 48 | 52 |
| XXL | 595 | 403 | 72.5 | 73 | 200 | 590 | 559 | 826 | 66 | 618 | 406 | 1016 | 48 | 52 |
All measurements in millimetres unless marked (°) for angles.
