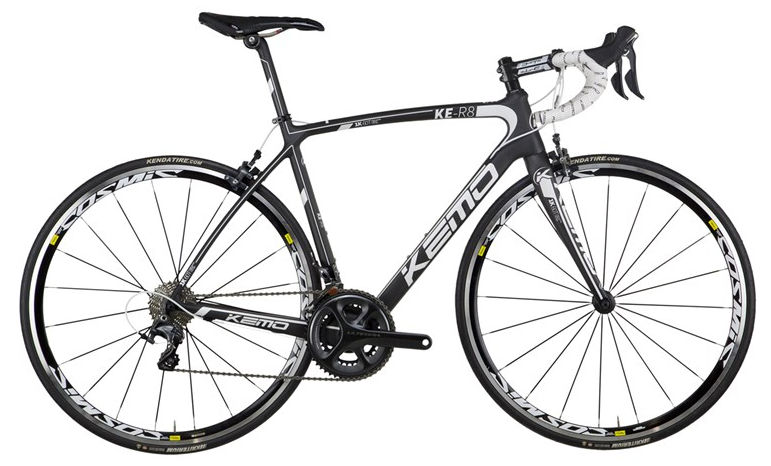

2014 Kemo KE-R8 geometry
Full frame geometry for the 2014 Kemo KE-R8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 509 | 349 | 75 | 69 | 120 | 485 | 435 | 725 | 72 | 575 | 402 | 966 | 48 | 77 |
| XS | 519 | 361 | 74.5 | 72 | 120 | 505 | 465 | 746 | 70 | 561 | 402 | 953 | 48 | 58 |
| S | 522 | 370 | 73.5 | 72 | 125 | 525 | 485 | 752 | 68 | 572 | 402 | 964 | 48 | 58 |
| M | 543 | 379 | 73.5 | 72.5 | 145 | 540 | 515 | 778 | 68 | 588 | 402 | 976 | 48 | 55 |
| L | 557 | 390 | 73 | 72.5 | 160 | 560 | 535 | 793 | 68 | 598 | 404 | 993 | 48 | 55 |
| XL | 576 | 393 | 72.5 | 73 | 180 | 575 | 565 | 816 | 66 | 603 | 404 | 998 | 48 | 52 |
All measurements in millimetres unless marked (°) for angles.
