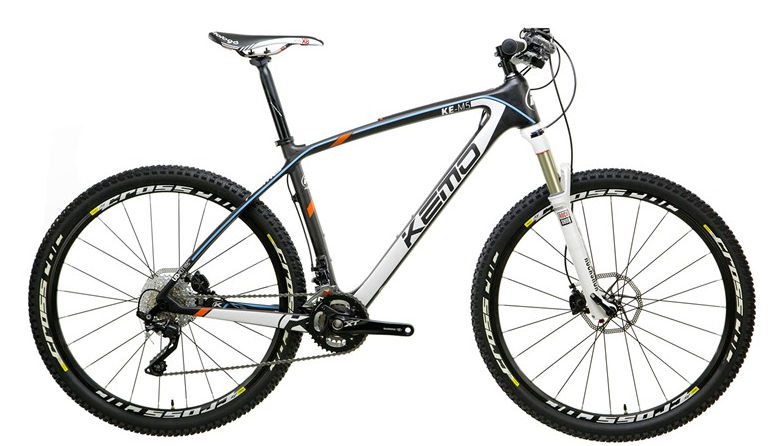

2014 Kemo KE-M5 geometry
Full frame geometry for the 2014 Kemo KE-M5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 423 | 73 | 71 | 110 | 595 | 440 | 50 | 660 | 430 | 1085 |
| M | 609 | 434 | 73 | 71 | 120 | 610 | 480 | 50 | 675 | 430 | 1101 |
| L | 618 | 447 | 73 | 71 | 130 | 625 | 520 | 50 | 691 | 430 | 1116 |
All measurements in millimetres unless marked (°) for angles.
