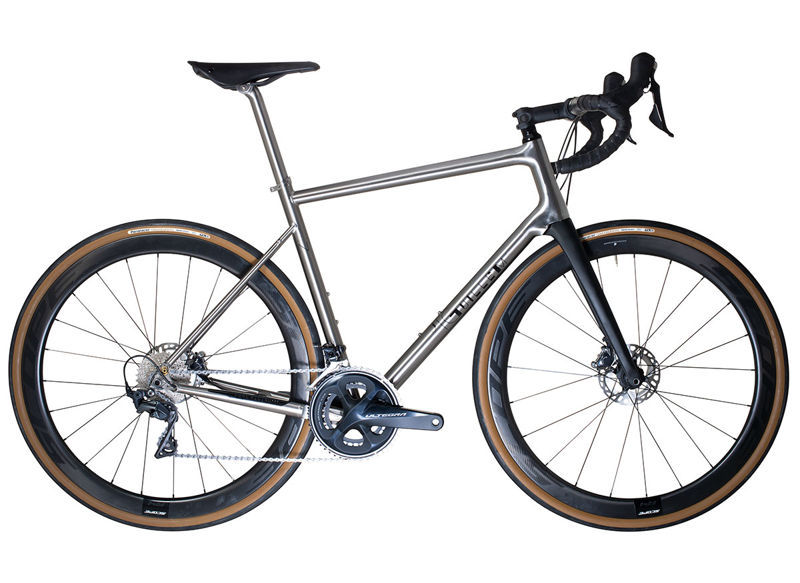

2021 J.Guillem Orient geometry
Full frame geometry for the 2021 J.Guillem Orient, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49CM | 553 | 367 | 74.5 | 71 | 150 | 520 | 460 | 763 | 75 | 579 | 420 | 982 |
| 52CM | 557 | 371 | 74 | 72 | 150 | 531 | 490 | 763 | 75 | 585 | 420 | 994 |
| 54CM | 571 | 371 | 73.5 | 72 | 165 | 540 | 510 | 779 | 75 | 589 | 420 | 998 |
| 56CM | 587 | 381 | 73.3 | 72.5 | 180 | 558 | 530 | 797 | 75 | 600 | 420 | 1009 |
| 58CM | 606 | 389 | 73 | 72.5 | 200 | 574 | 550 | 813 | 75 | 613 | 420 | 1022 |
| 60CM | 624 | 391 | 72.5 | 73 | 215 | 587 | 570 | 830 | 75 | 615 | 420 | 1024 |
| 62CM | 627 | 402 | 72.5 | 73 | 220 | 600 | 590 | — | 75 | 628 | 420 | 1037 |
All measurements in millimetres unless marked (°) for angles.
