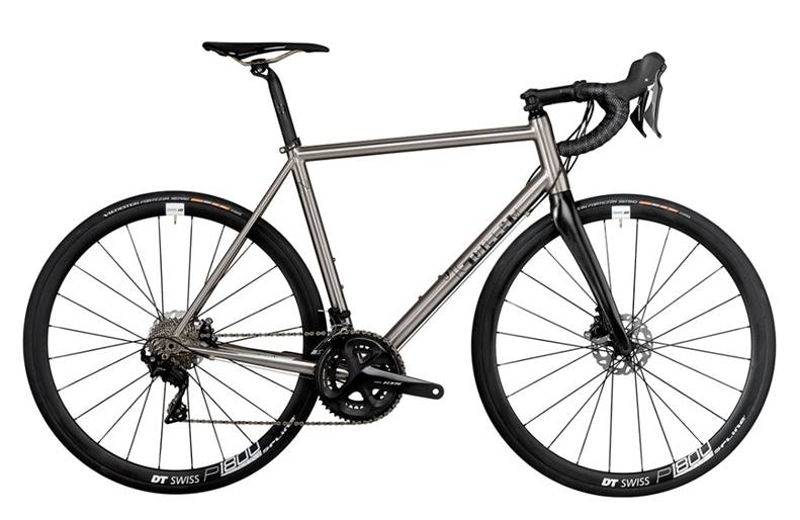

2017 J.Guillem Major Disc geometry
Full frame geometry for the 2017 J.Guillem Major Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49CM | 532 | 381 | 75.5 | 72.5 | 130 | 520 | 475 | 747 | 70 | 576 | 415 | 981 |
| 52CM | 544 | 379 | 74 | 73 | 140 | 535 | 505 | 766 | 70 | 573 | 415 | 977 |
| 54CM | 558 | 384 | 73.5 | 73 | 155 | 550 | 525 | 782 | 70 | 583 | 415 | 978 |
| 56CM | 574 | 392 | 73.3 | 73.5 | 170 | 565 | 545 | 799 | 70 | 591 | 415 | 986 |
| 58CM | 593 | 399 | 73 | 73.5 | 190 | 580 | 565 | 819 | 68 | 603 | 415 | 1008 |
| 60CM | 608 | 409 | 72.5 | 73.5 | 205 | 600 | 585 | 835 | 68 | 617 | 415 | 1022 |
| 62CM | 617 | 421 | 72.5 | 73.5 | 215 | 615 | 605 | — | 68 | 632 | 415 | 1037 |
All measurements in millimetres unless marked (°) for angles.
