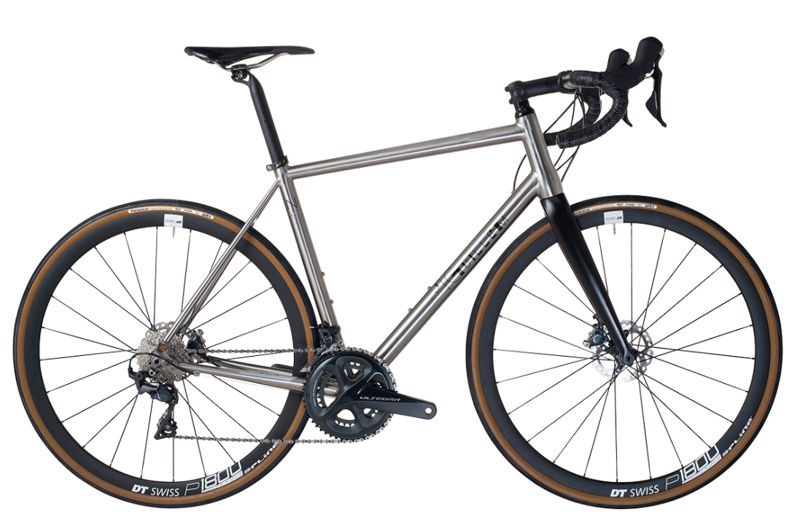

2017 J.Guillem Orient geometry
Full frame geometry for the 2017 J.Guillem Orient, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 550 | 371 | 75 | 72 | 145 | 520 | 460 | 745 | 75 | 575 | 405 | 969 |
| 52 | 560 | 369 | 74 | 72 | 155 | 531 | 490 | 763 | 75 | 577 | 405 | 975 |
| 54 | 574 | 369 | 73.5 | 72 | 170 | 540 | 510 | 779 | 75 | 581 | 412 | 982 |
| 56 | 590 | 380 | 73.2 | 72.5 | 185 | 558 | 530 | 797 | 75 | 592 | 415 | 996 |
| 58 | 604 | 389 | 73 | 72.5 | 200 | 574 | 550 | 813 | 75 | 606 | 418 | 1012 |
| 60 | 620 | 392 | 72.5 | 73 | 215 | 587 | 570 | 830 | 75 | 608 | 418 | 1015 |
All measurements in millimetres unless marked (°) for angles.
